Carbon ceramic brake system set for BMW F90

We are installing carbon ceramic onto BMW F90

Standard brake system on BMW F90 consists of
front axle:
– blue color 6-pot Brembo caliper with a logo ///М
– brake rotor 395-36, perforated with directed ventilation
– brake pads
rer axle:
– brake caliper with a floating brace
– brake rotor 380-28, perforated with directed ventilation
– brake pads

The weight of the front cast iron brake rotor is 15,1 kg, rear one – 9,6 kg.

Carbon ceramic system consists of:
– front 6-pot gold color Brembo caliper with a logo ///М
– carbon ceramic brake rotor Brembo 400-38, perforated with directed ventilation
– front brake pads
– rear brake caliper with a floating brace
– carbon ceramic brake rorot 380-28, perforated with directed ventilation
– rear brake pads

The weight of the front carbon ceramic brake rotor is 7,3 kg, rear one – 5,2 kg.

In total we made the front axle 2 * (15,1 – 7,3) = 15,6 kg lighter, and rear one 2 * (9,6 – 5,2) = 8,8 kg lighter.
Total “weight loss” is 24,4 kg

Brake liquid DOT 5.1.

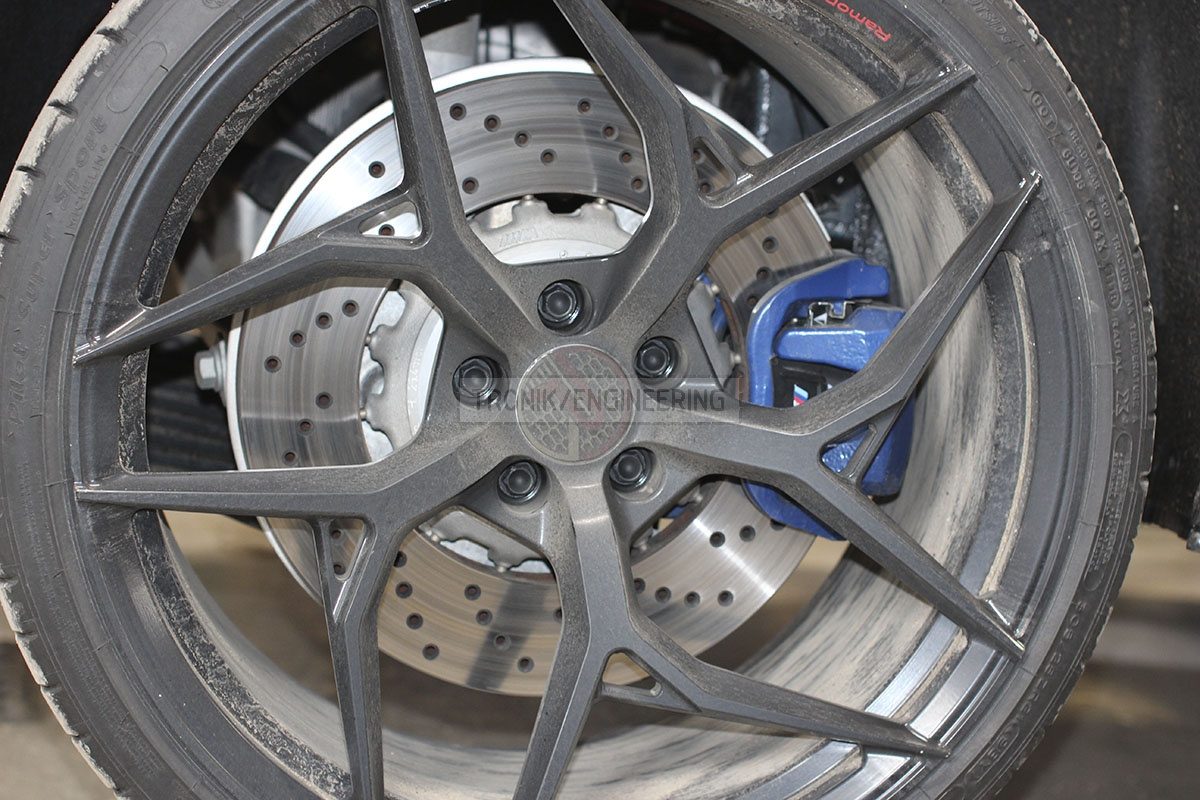

rear-brake-system-BMW-F90
rear-brake-system-BMW-F90

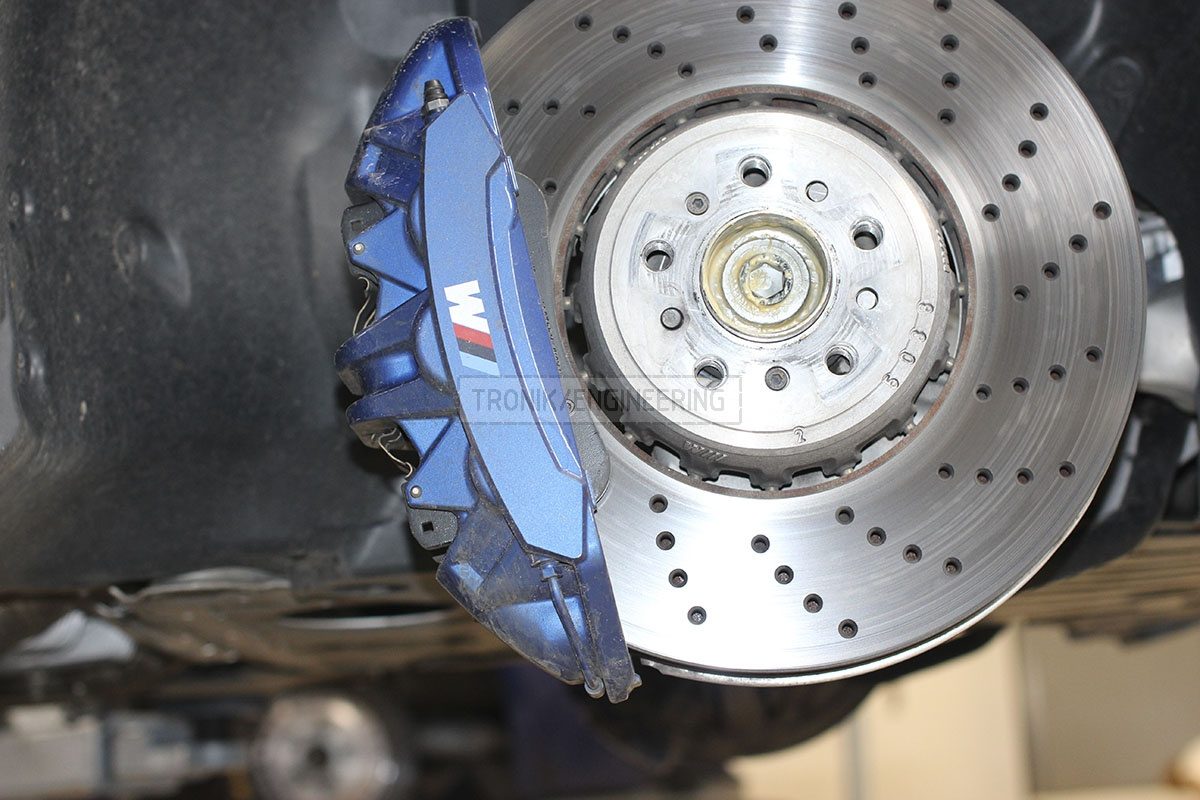

front axle brake system BMW F90pic 1
front axle brake system BMW F90pic 1
front axle brake system BMW F90pic 2
front axle brake system BMW F90pic 2

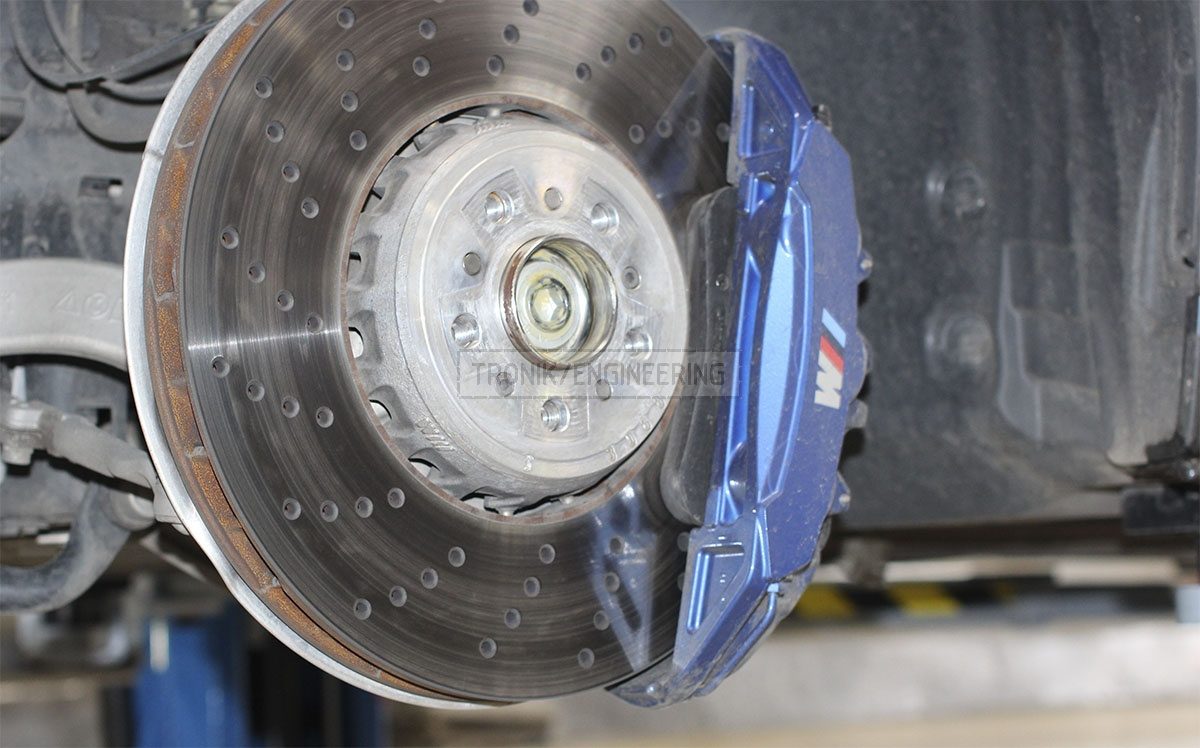

rear axle brake system BMW 90 pic 3
rear axle brake system BMW 90 pic 3

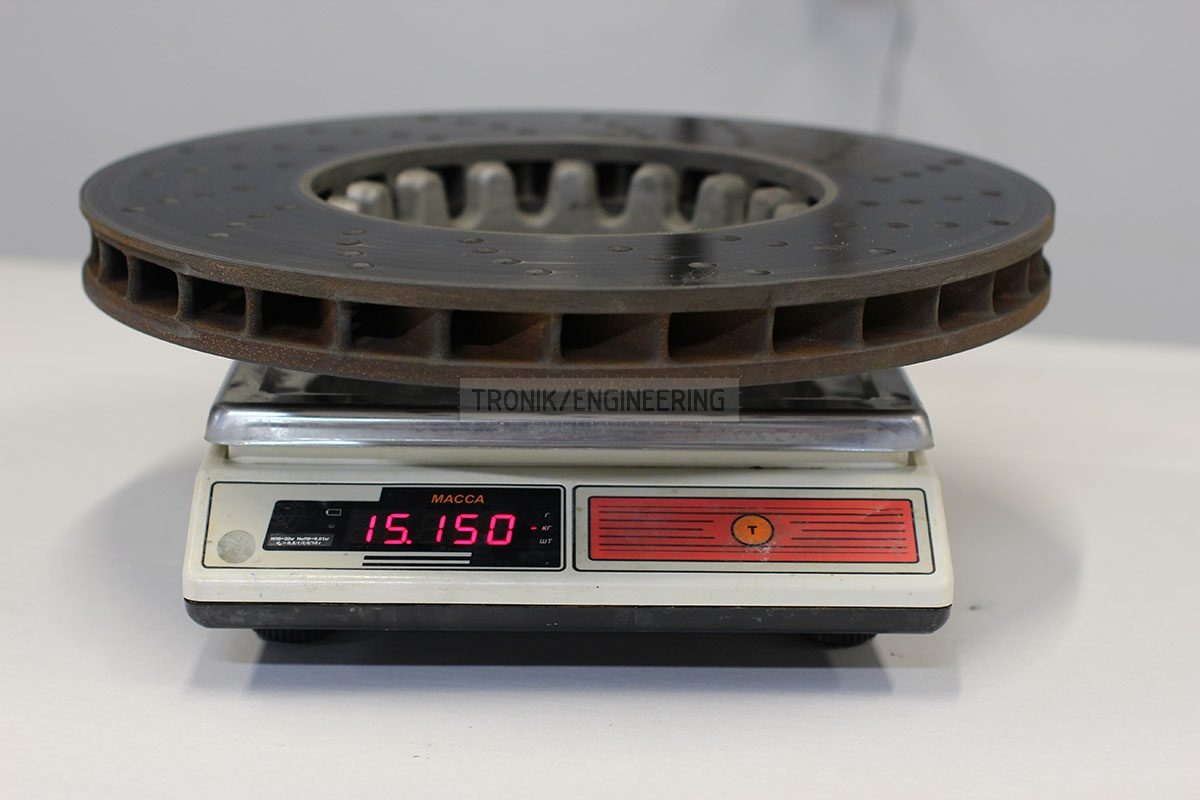

The weigh of the standard front brake rotor is 15 150 gr.

standard front brake rotor weight 15500gr
standard front brake rotor weight 15500gr

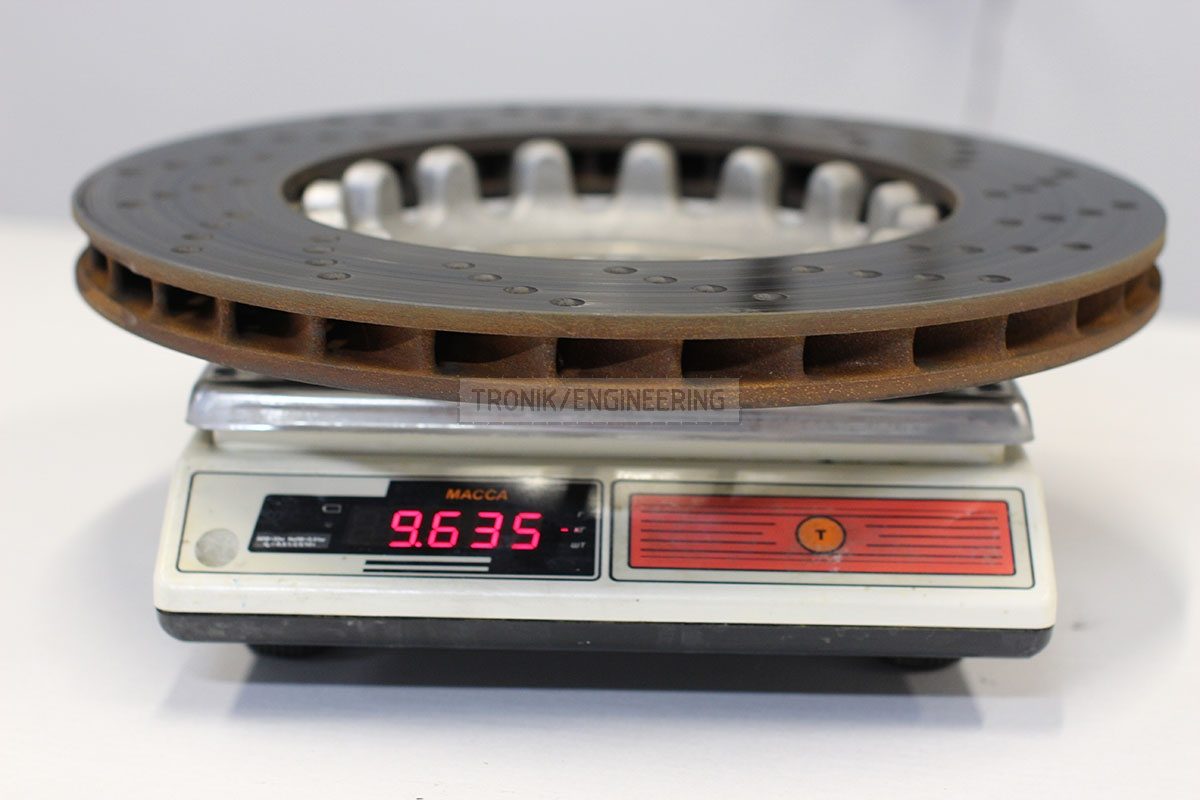

 The weigh of the standard rear brake rotor is 9 635 gr.

standard rear brake rotor weight 9635gr
standard rear brake rotor weight 9635gr

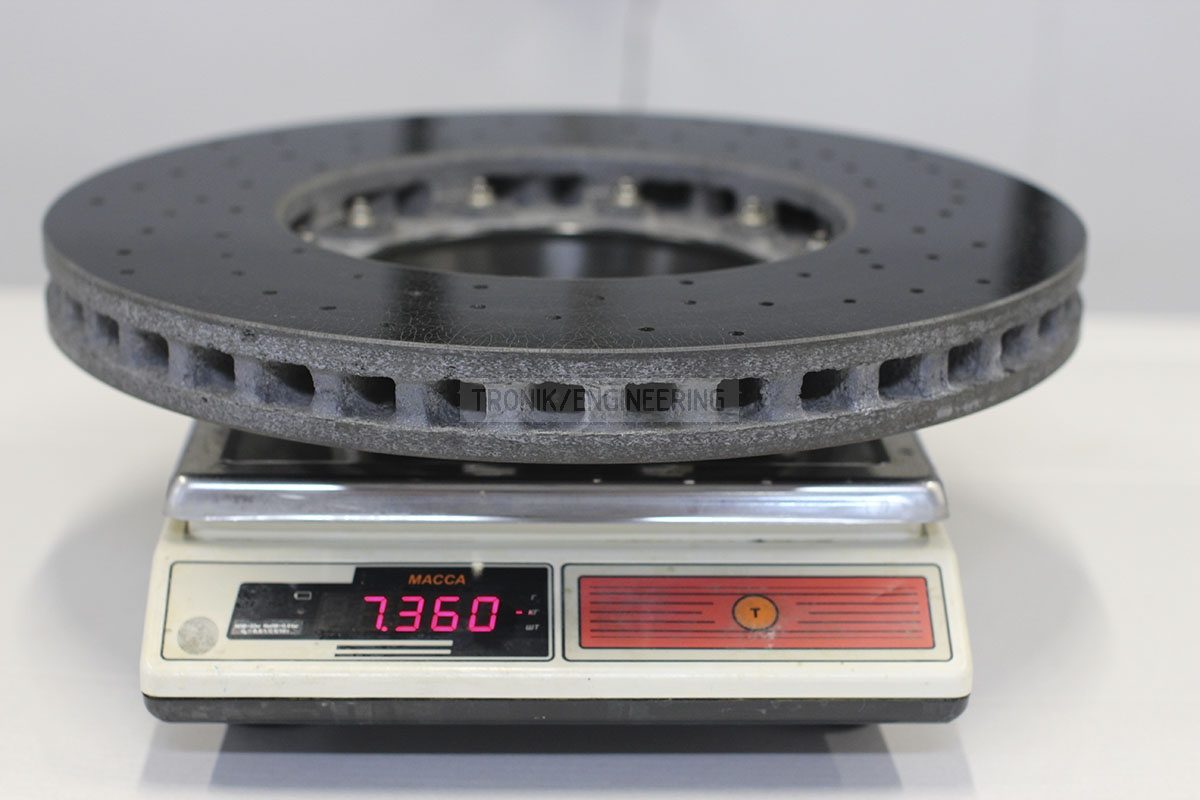

The weight of the left carbon ceramic brake rotor from the front axle is 7 360 gr.

left carbon ceramic front axle brake rotor weight 7360 gr
left carbon ceramic front axle brake rotor weight 7360 gr

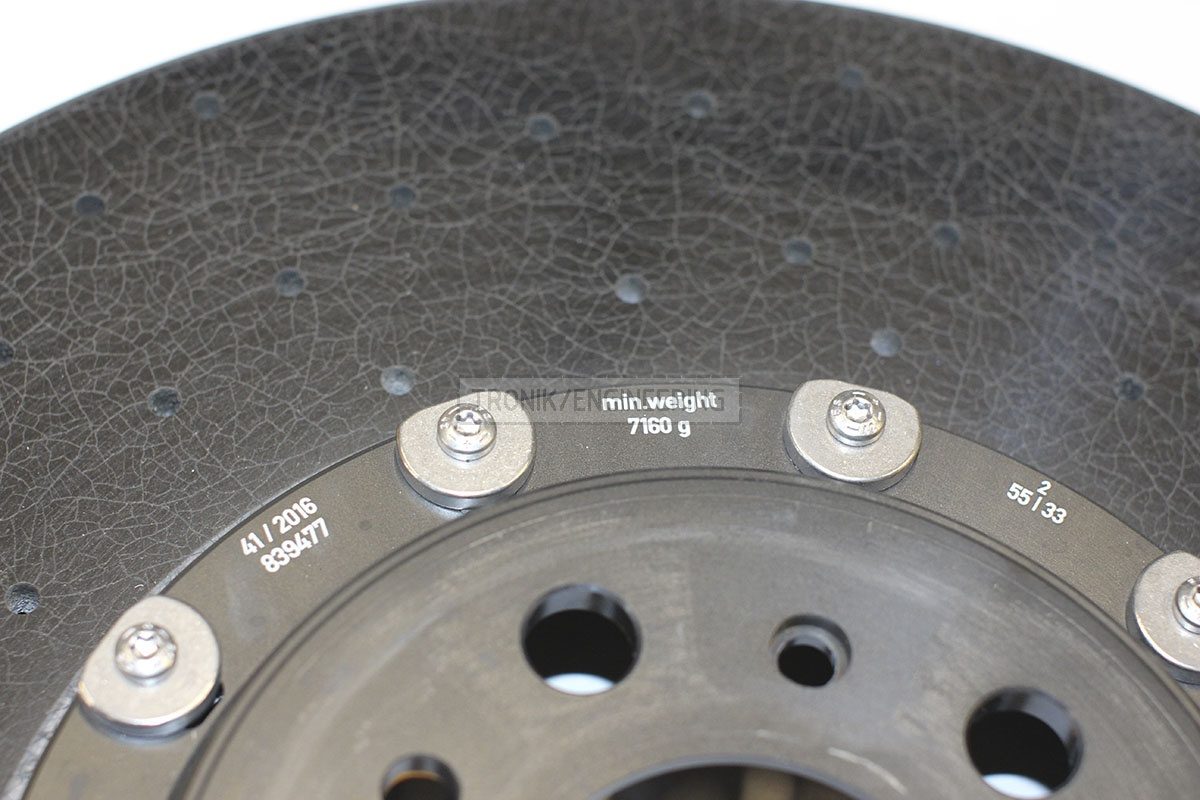

Minimal left carbon ceramic brake rotor weight from the front axle is 7160 gr.

minimal left carbon ceramic brake rotor weight from front axle 7160 gr
minimal left carbon ceramic brake rotor weight from front axle 7160 gr

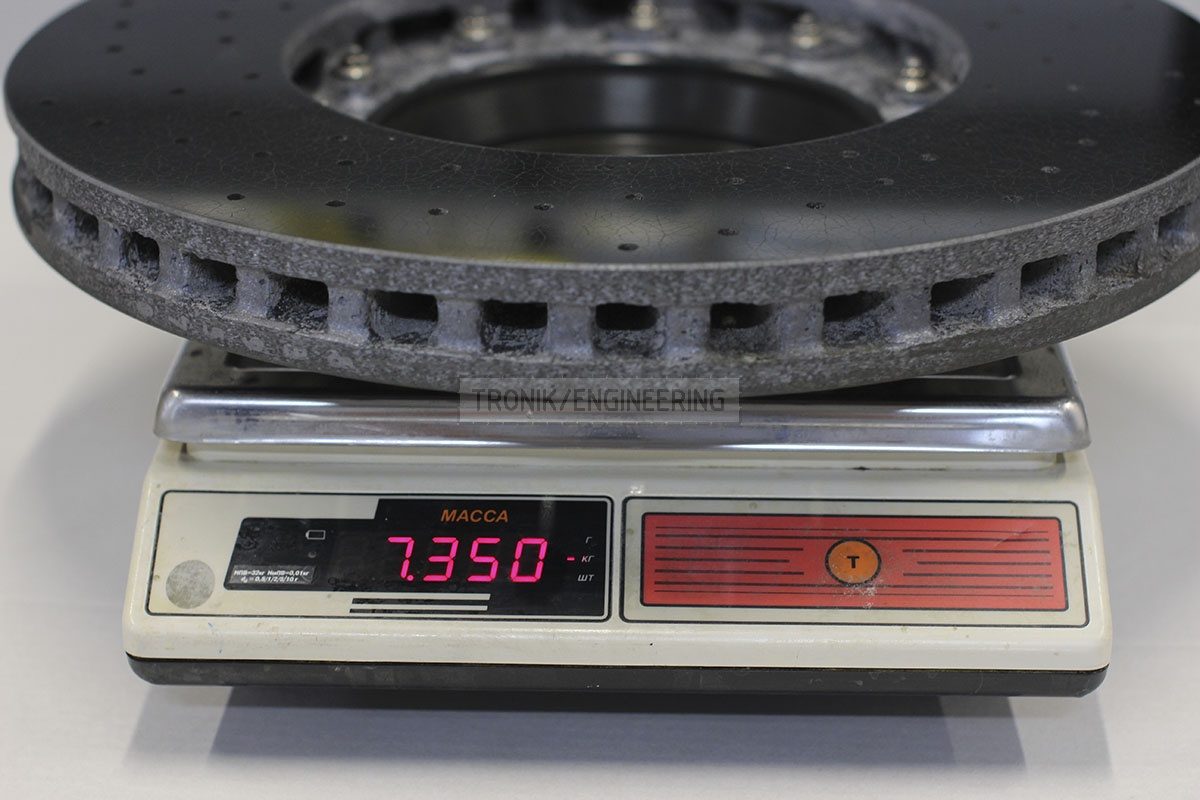

The right carbon ceramic brake rotor weight from the front axle is 7350 gr.

right ceramic brake rotor weight front axle 7350 gr
right ceramic brake rotor weight front axle 7350 gr

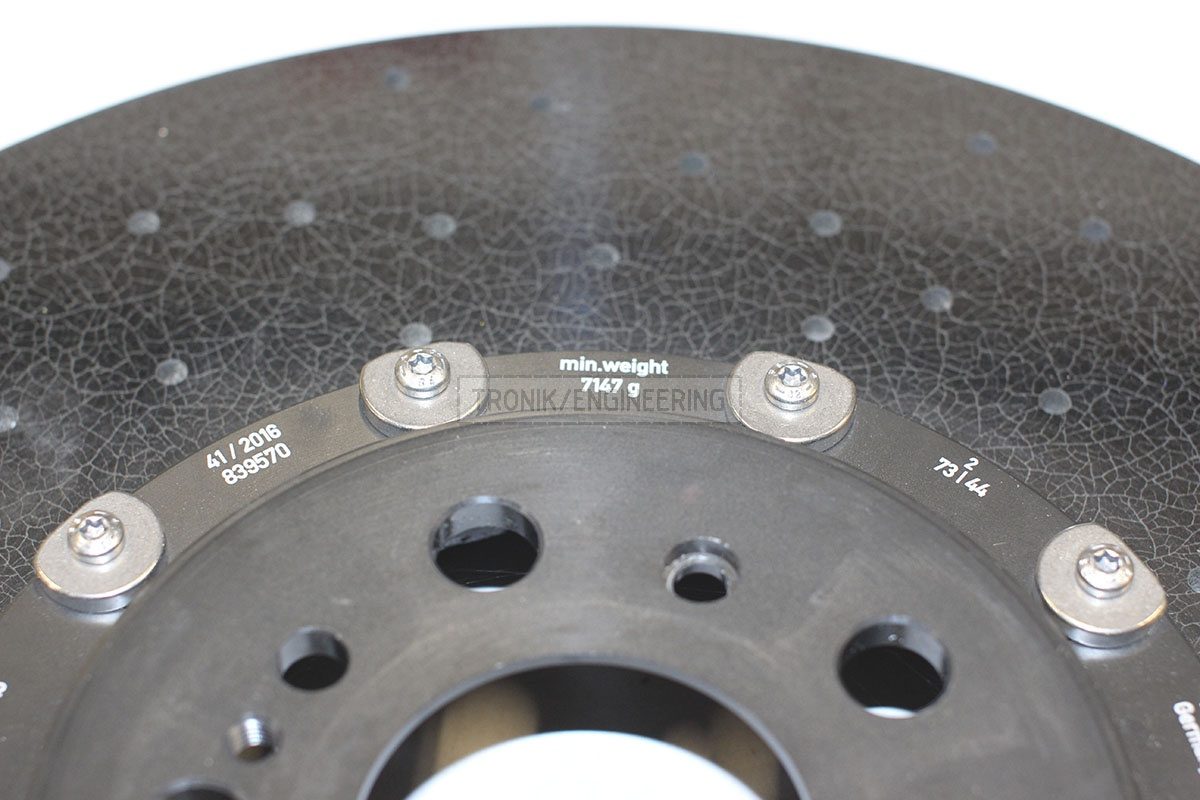

The minimal weight of a right front rotor 7147 gr.

minimal weight right front rotor 7147 gr
minimal weight right front rotor 7147 gr

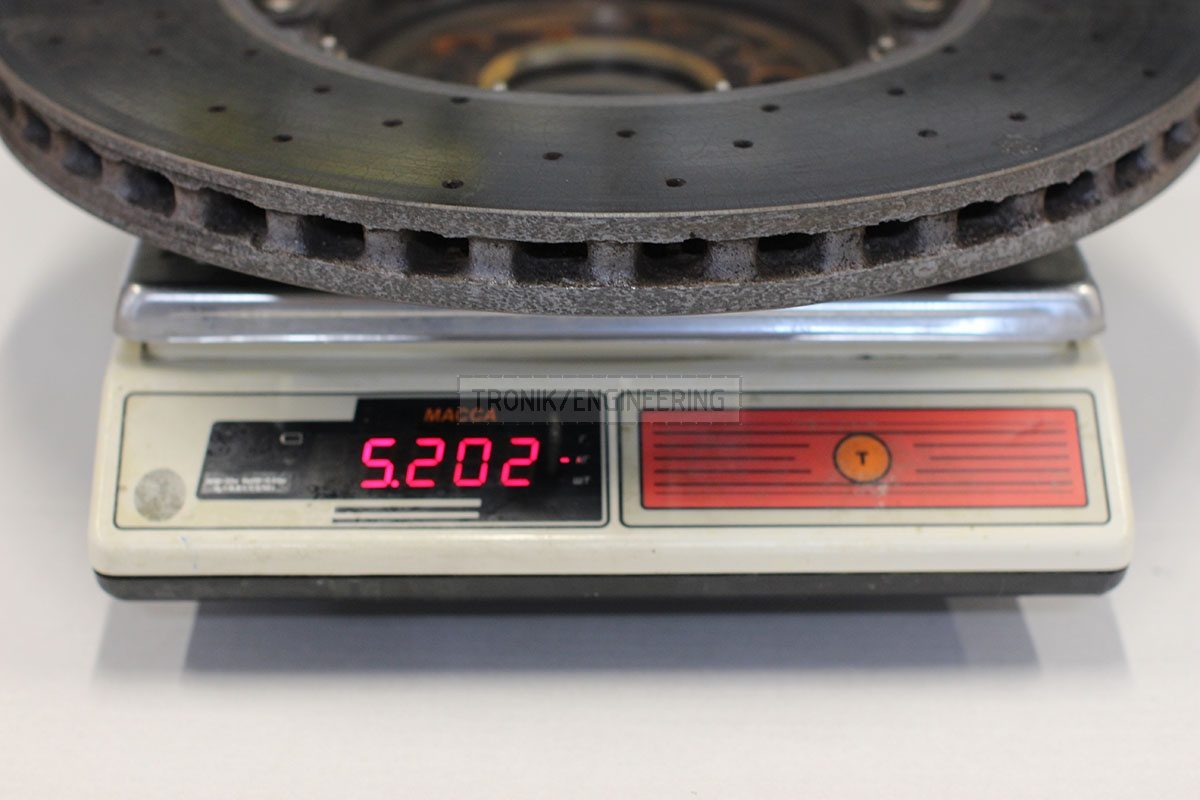

The right rear carbon ceramic brake rotor weight is 5202 gr.

right rear ceramic brake rotor weight 5202 gr
right rear ceramic brake rotor weight 5202 gr

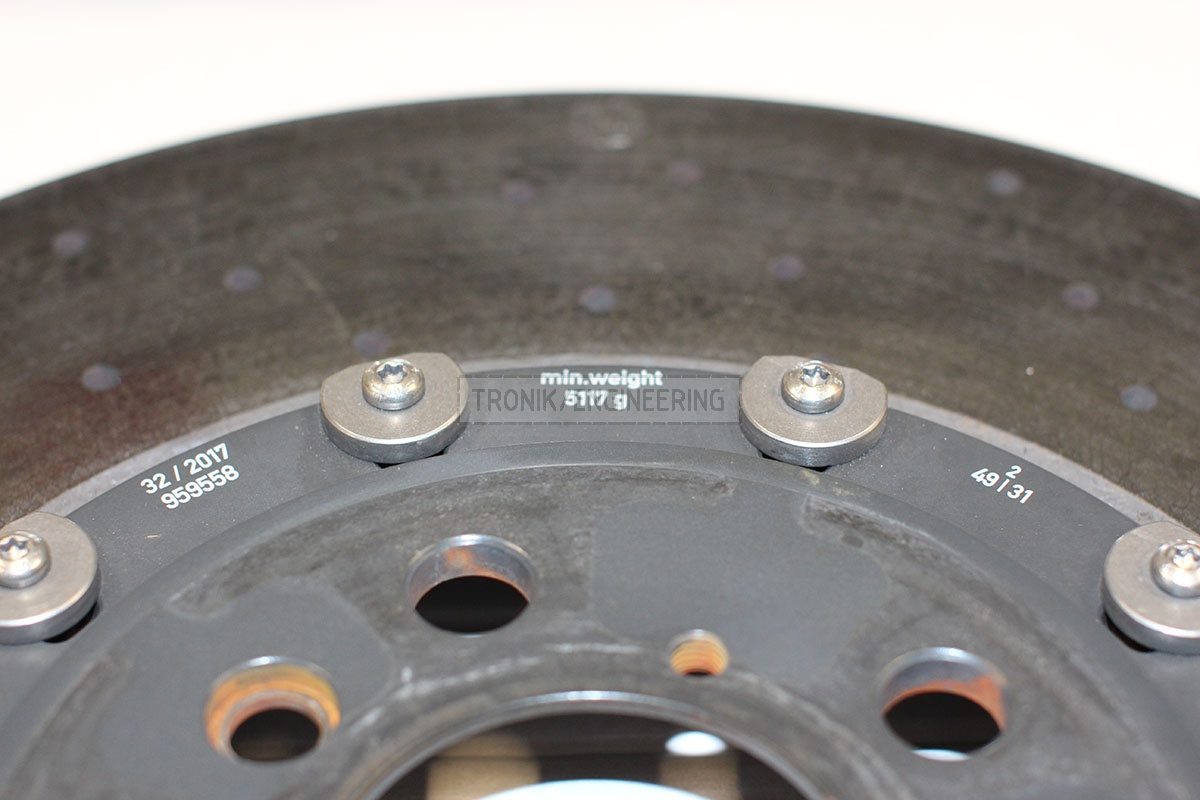

Minimal weight of the right rear axle carbon ceramic brake rotor is 5 117 gr.

minimal weight right rear brake rotor 5117 gr
minimal weight right rear brake rotor 5117 gr

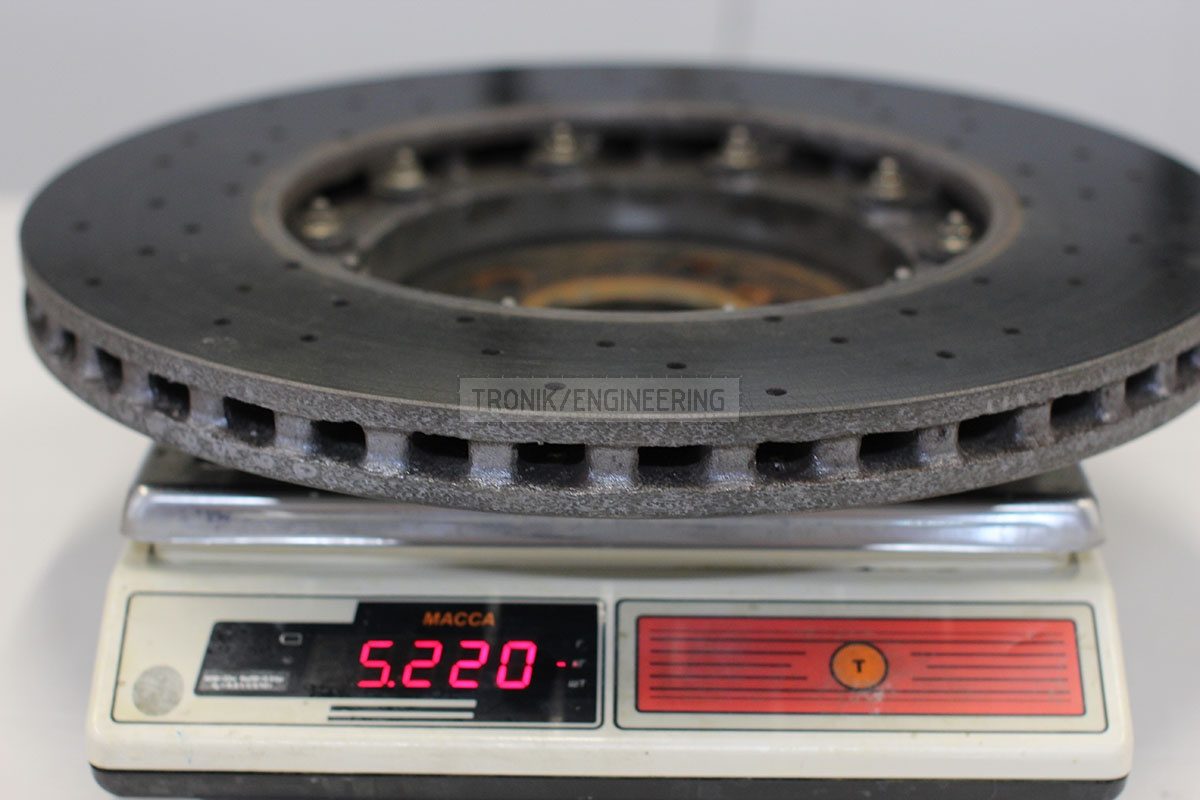

The weight of the left rear axle carbon ceramic brake rotor is 5 220 gr.

weight left rear ceramic rotor 5220 gr
weight left rear ceramic rotor 5220 gr

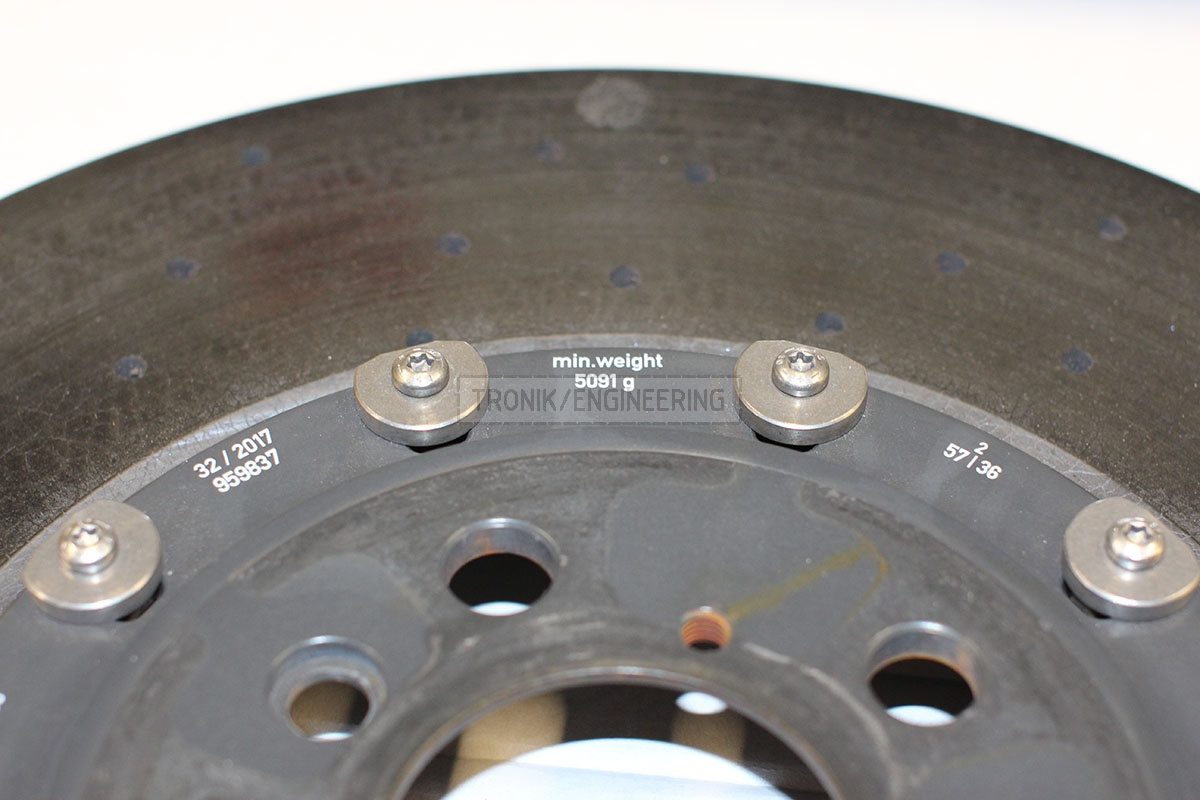

The minimal weight of the left rear axle brake rotor is 5 091 gr.

minimal weight left rear brake rotor 5091 gr
minimal weight left rear brake rotor 5091 gr

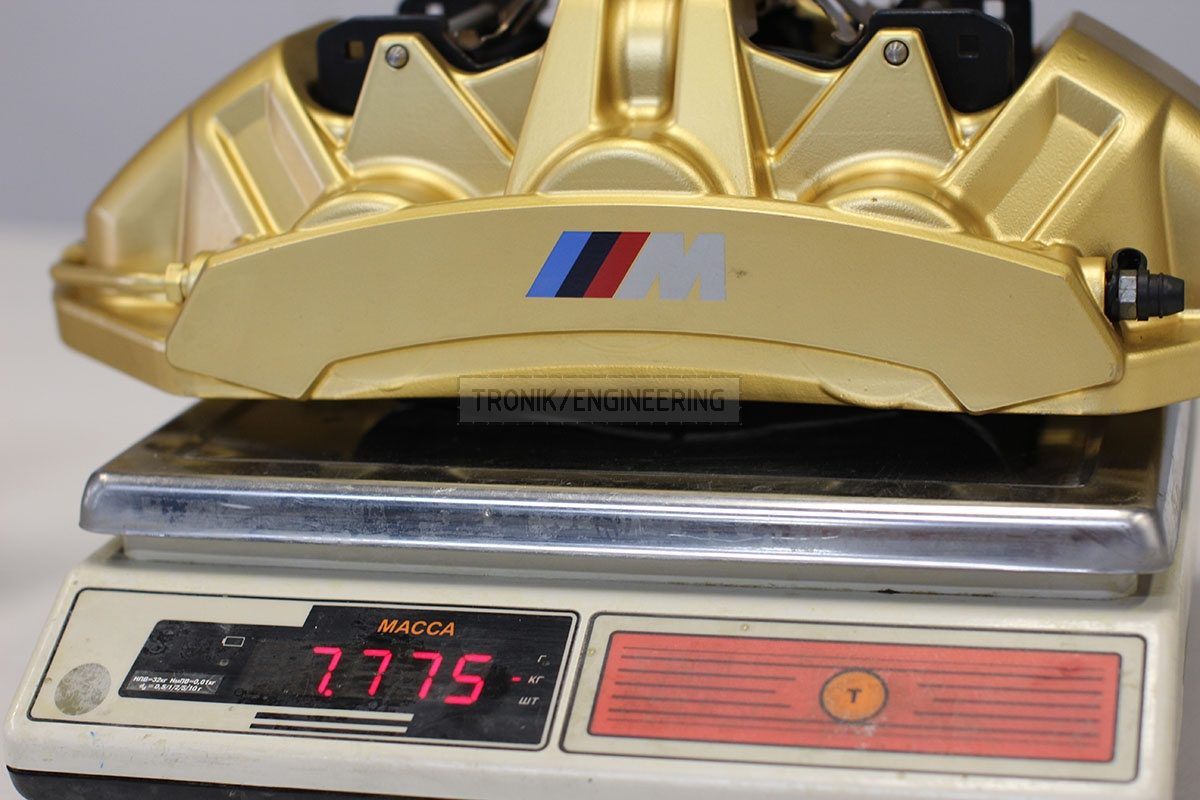

The weight of the front brake caliper and pads BMW F90 is 7 775 gr.

front brake caliper & pads weight 7775 gr
front brake caliper & pads weight 7775 gr

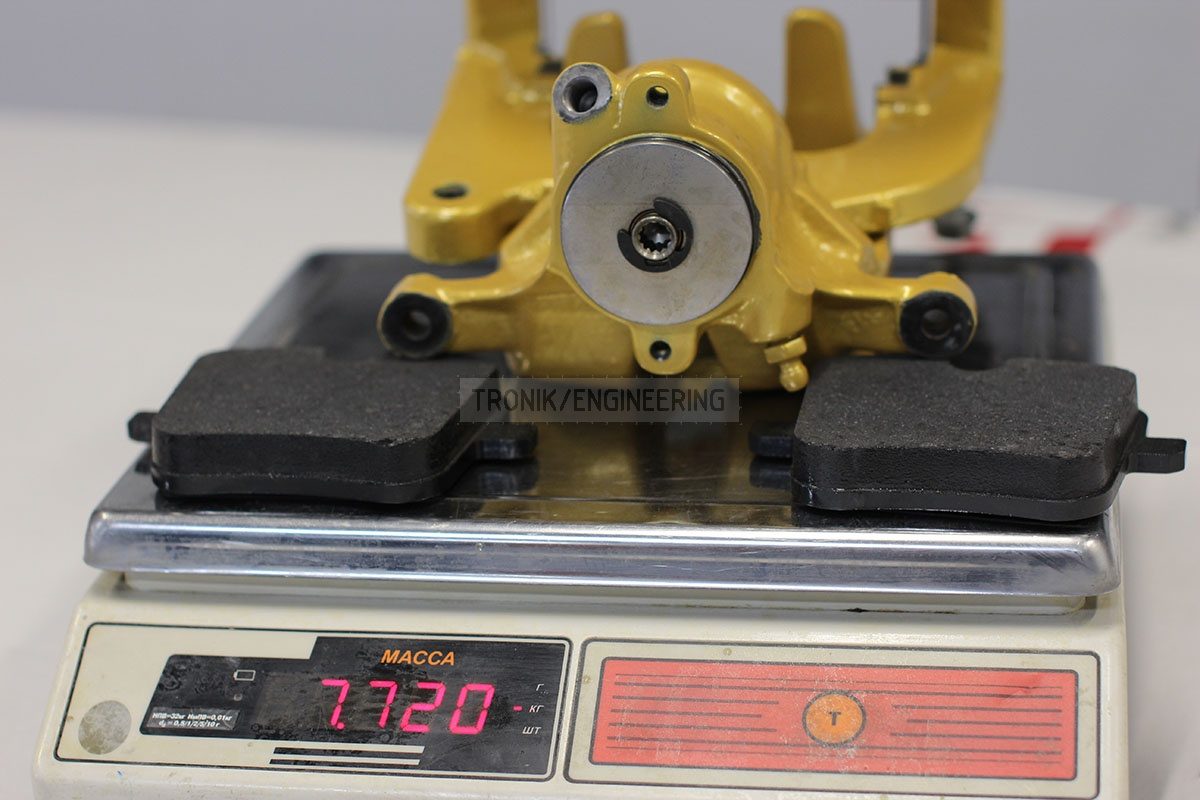

 Масса заднего тормозного суппорта и колодок BMW F90 7 720 грамм

rear brake caliper & pads weight 7720 gr
rear brake caliper & pads weight 7720 gr

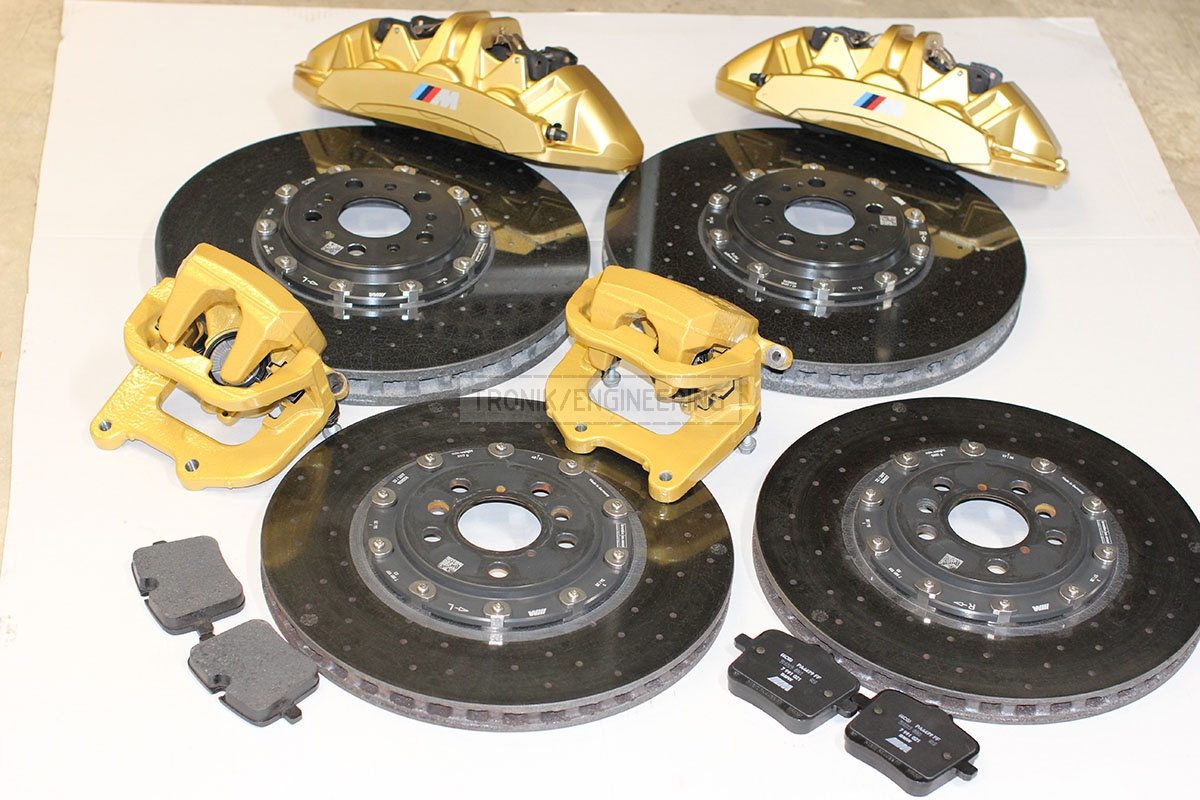

carbon ceramik brake system set BMW F90 pic 1
carbon ceramik brake system set BMW F90 pic 1

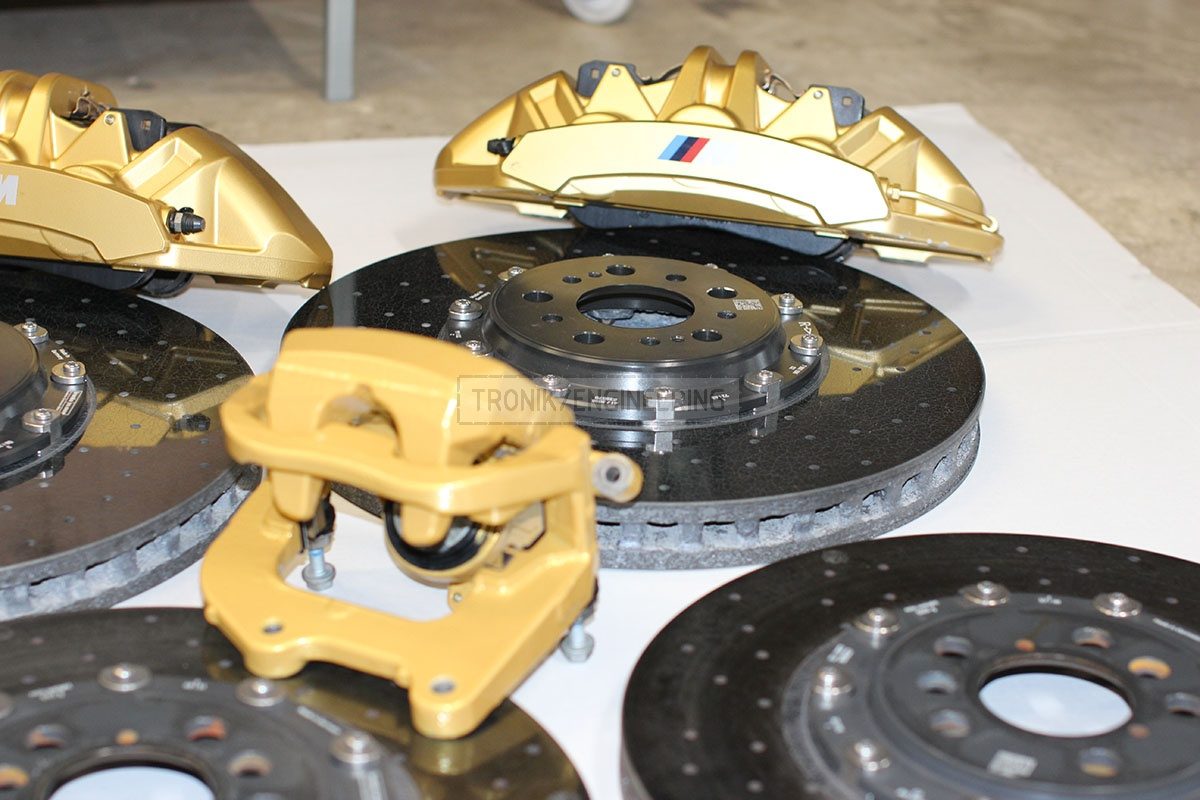

carbon ceramik brake system set BMW F90 pic 2
carbon ceramik brake system set BMW F90 pic 2

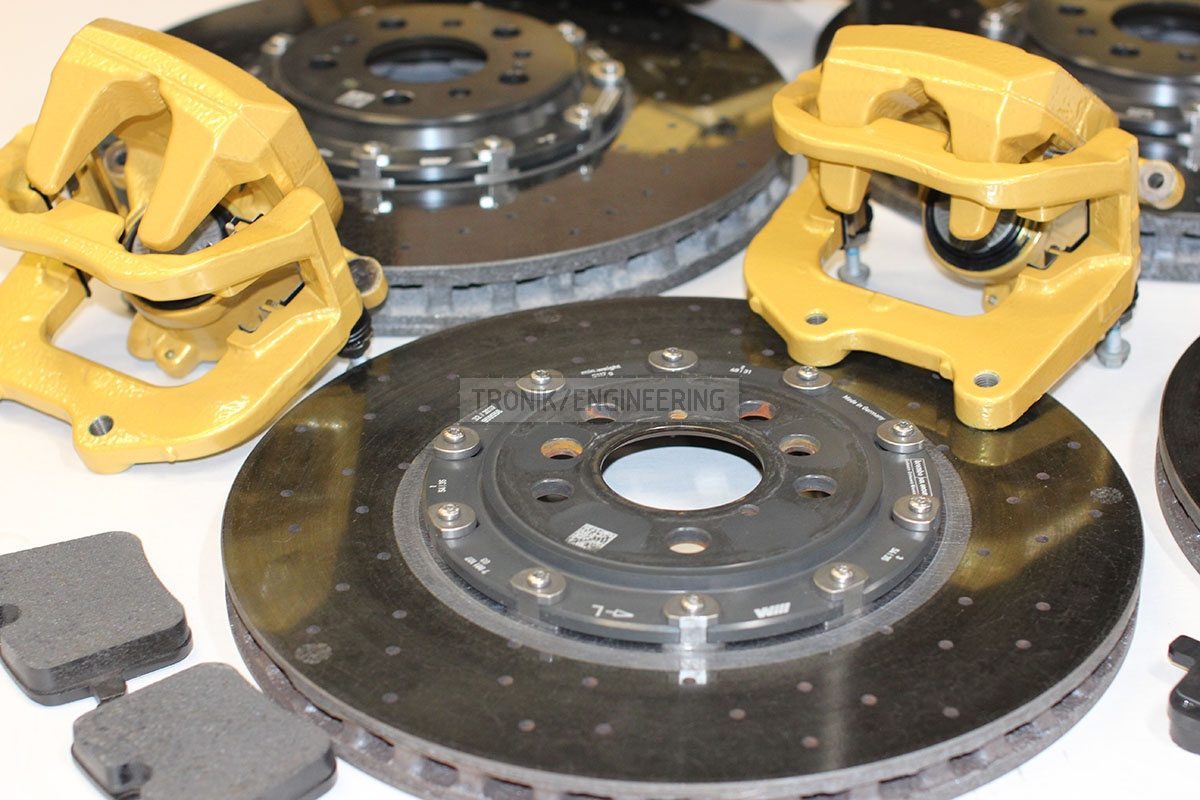

carbon ceramik brake system set BMW F90 pic 3
carbon ceramik brake system set BMW F90 pic 3

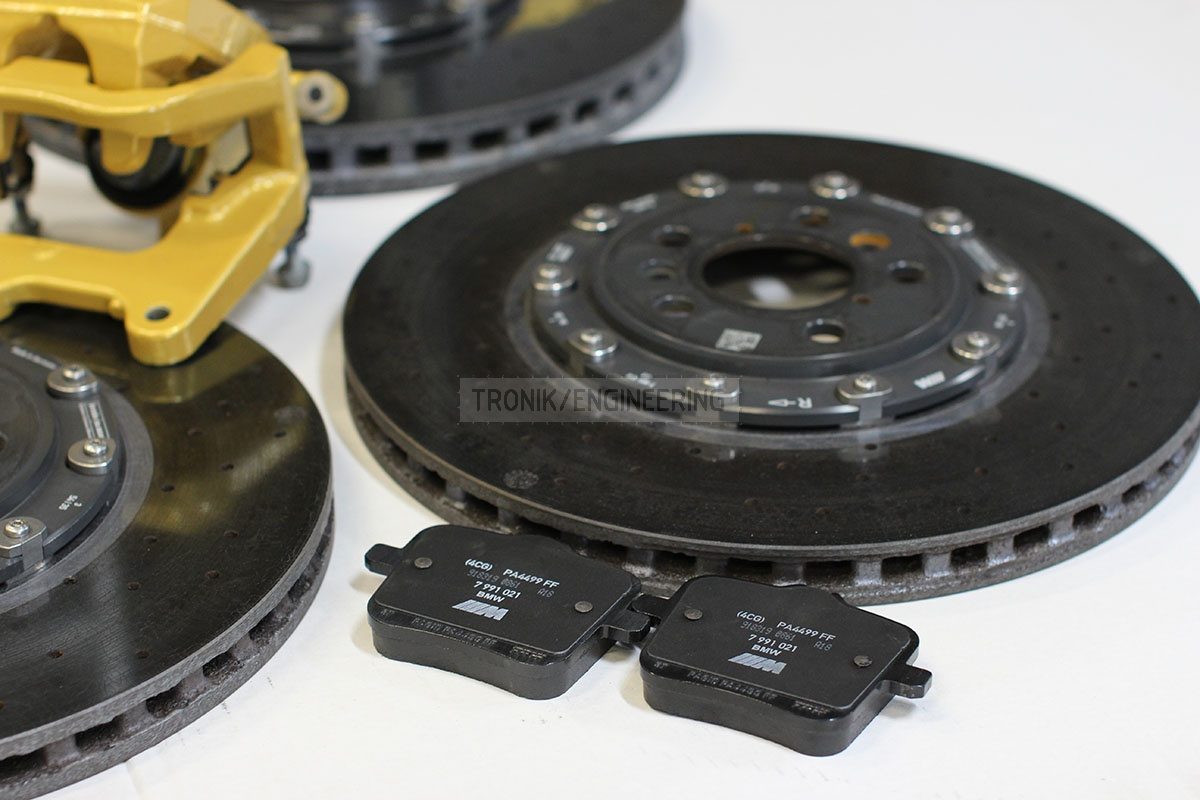

carbon ceramik brake system set BMW F90 pic 4
carbon ceramik brake system set BMW F90 pic 4

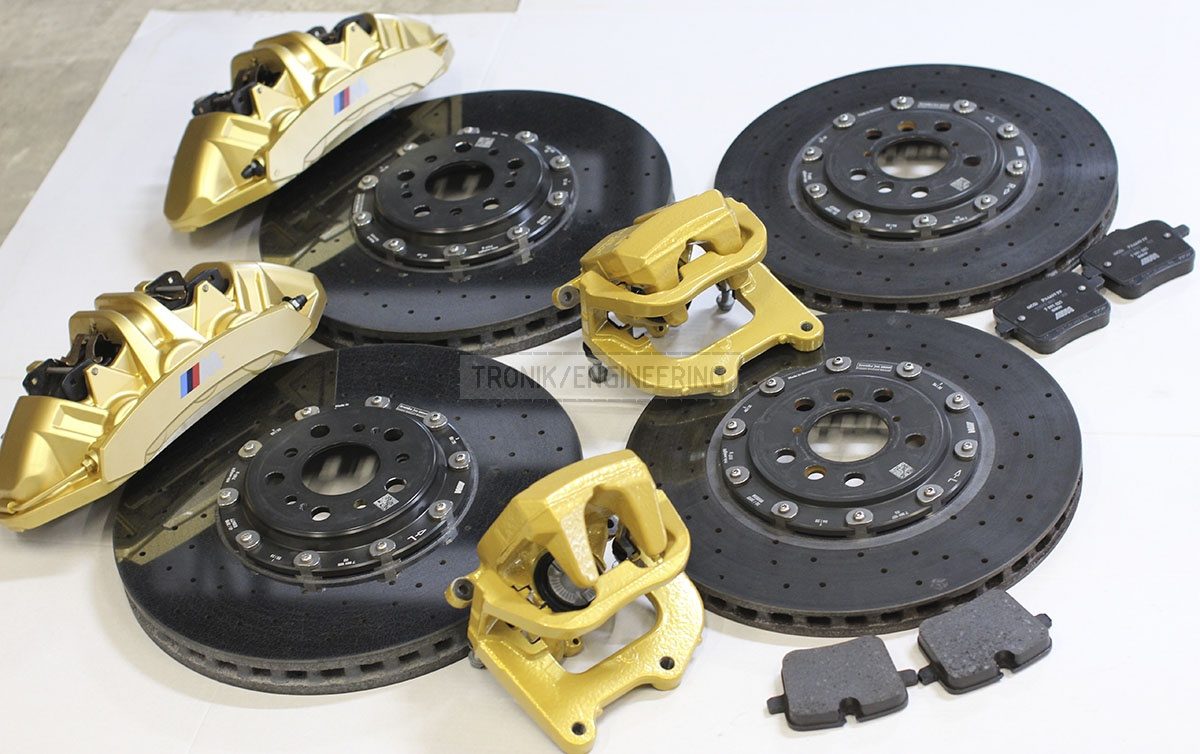

carbon ceramik brake system set BMW F90 pic 5
carbon ceramik brake system set BMW F90 pic 5

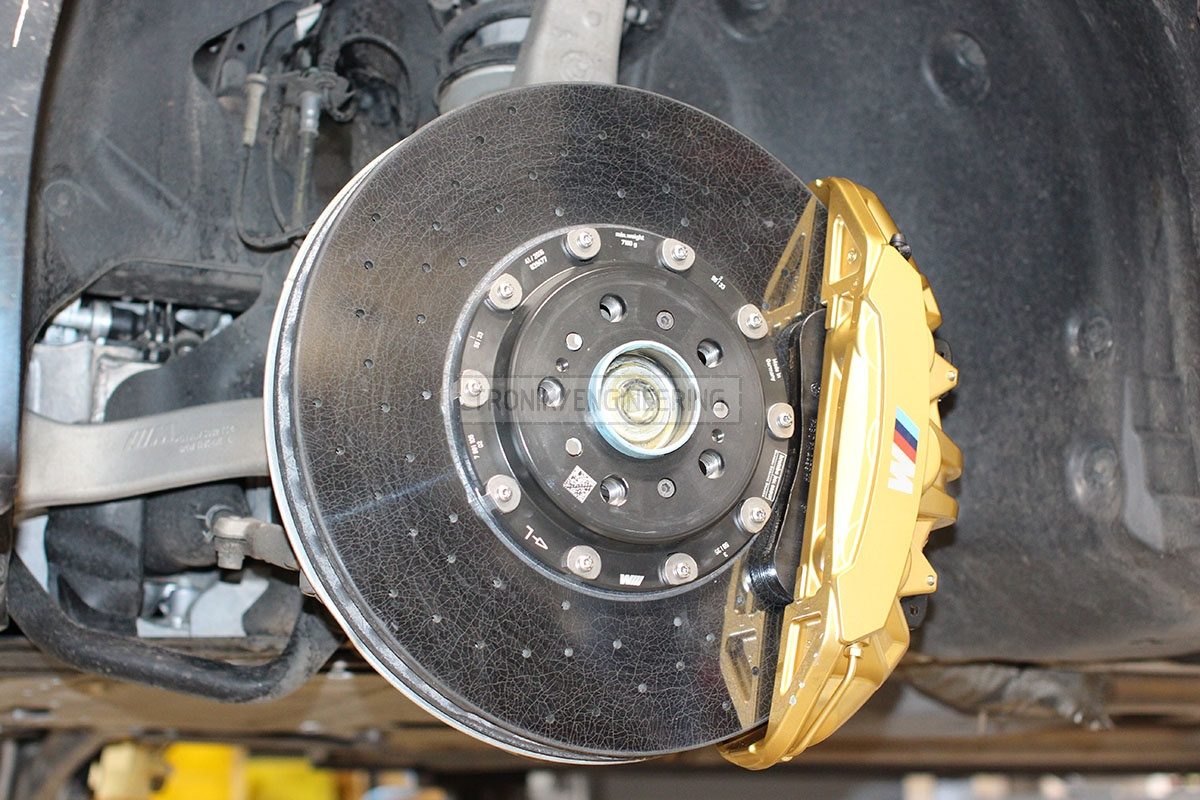

carbon ceramic brake system front axle BMW F90 pic 1
carbon ceramic brake system front axle BMW F90 pic 1

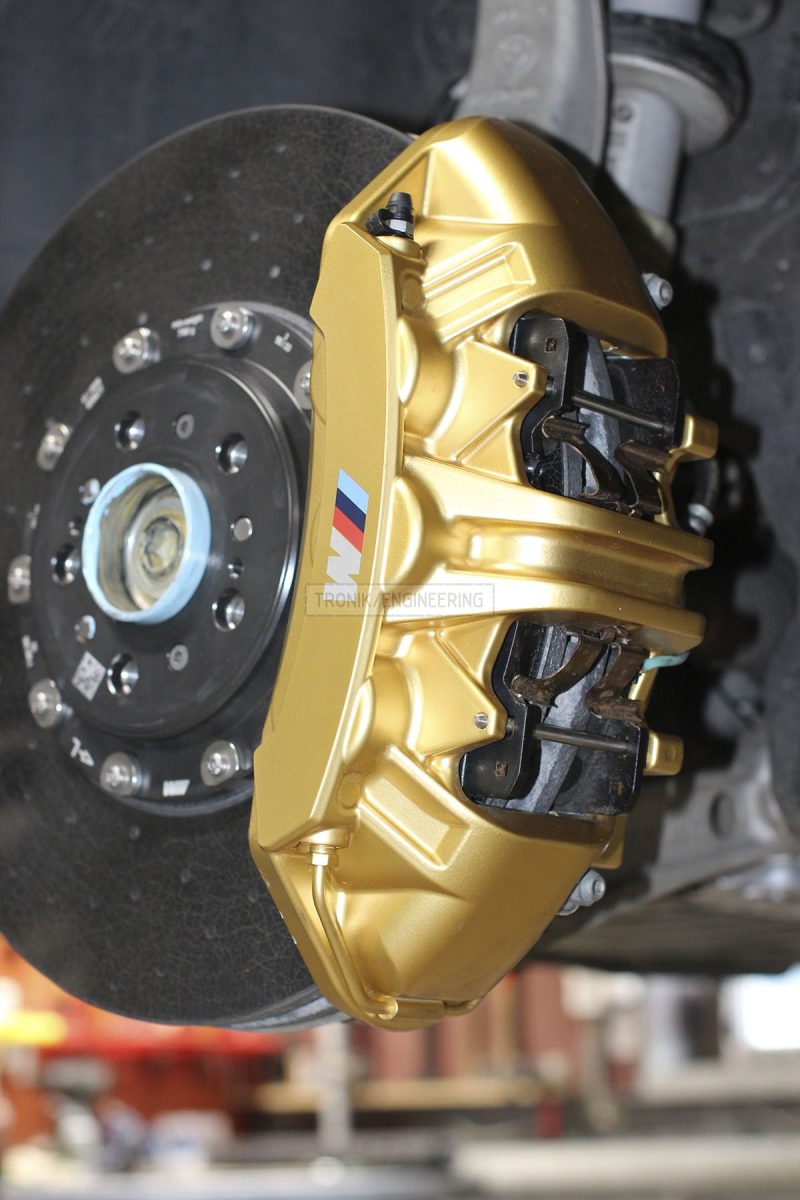

carbon ceramic brake system front axle BMW F90 pic 2
carbon ceramic brake system front axle BMW F90 pic 2

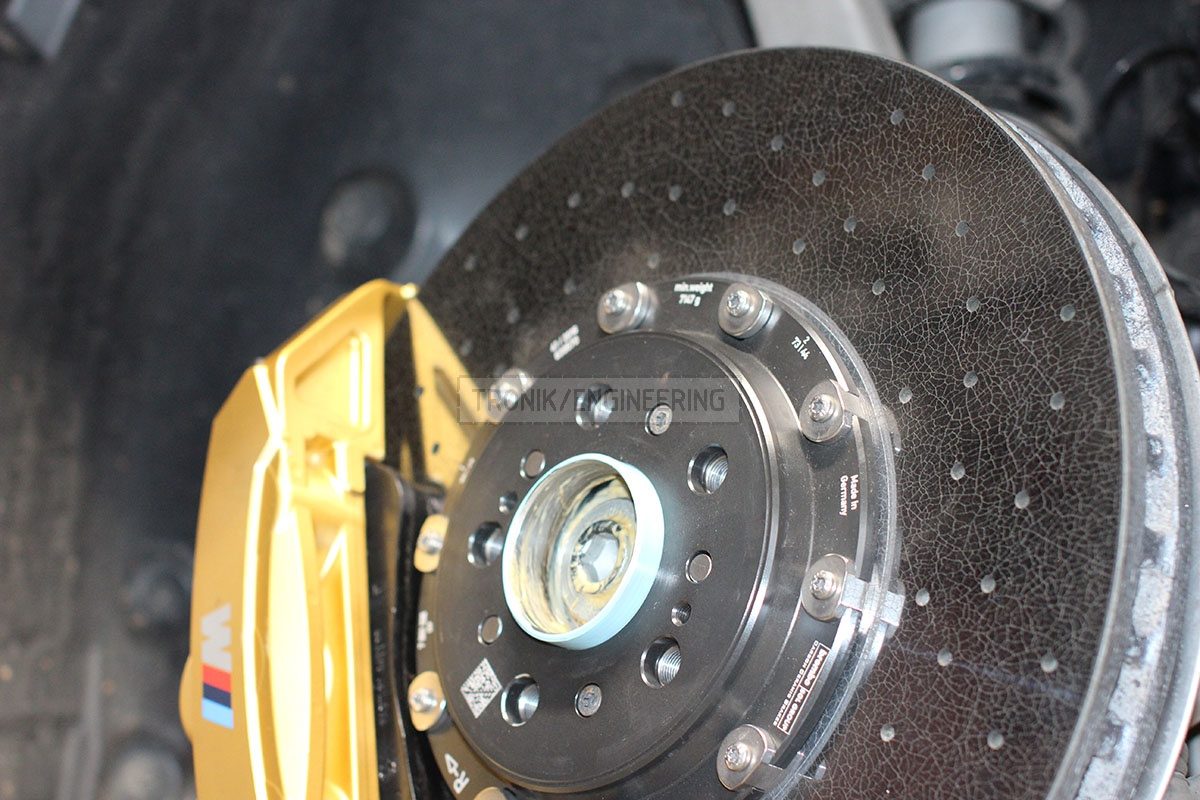

carbon ceramic brake system front axle BMW F90 pic 3
carbon ceramic brake system front axle BMW F90 pic 3

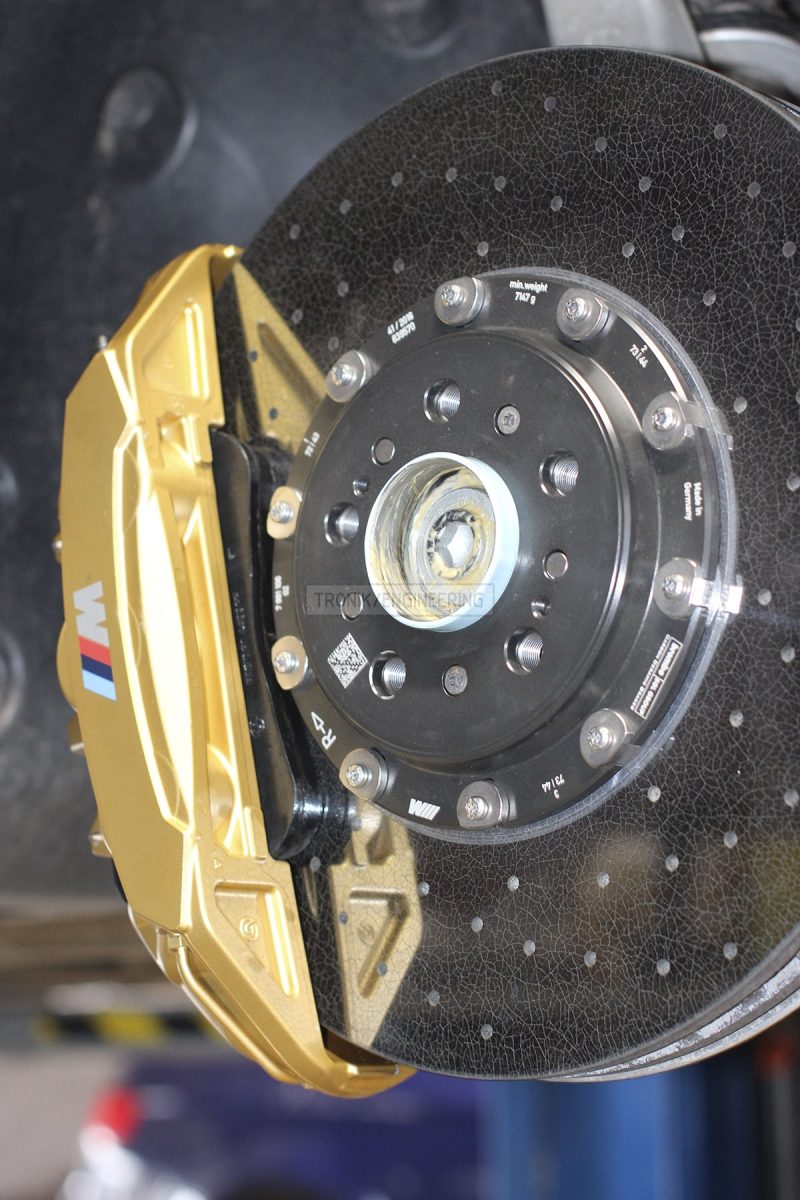

carbon ceramic brake system front axle BMW F90 pic 4
carbon ceramic brake system front axle BMW F90 pic 4

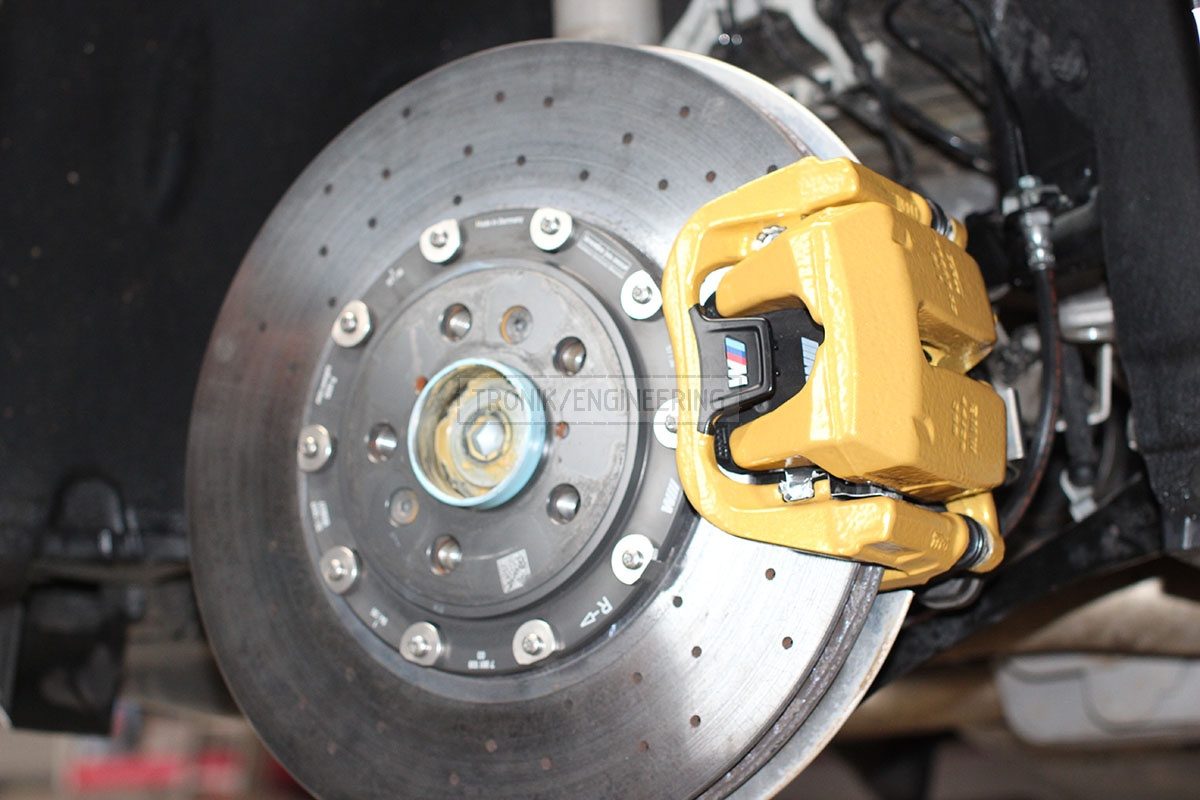

carbon ceramic brake system rear axle BMW F90 pic 1
carbon ceramic brake system rear axle BMW F90 pic 1

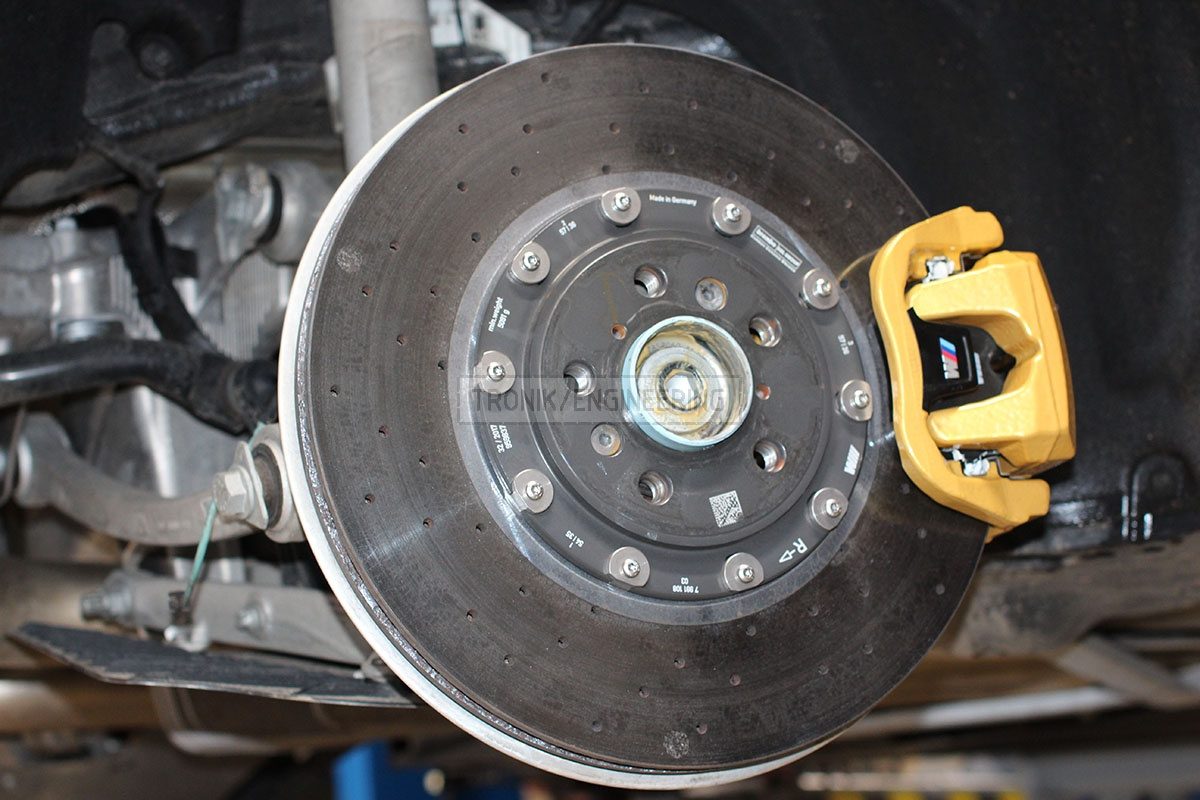

carbon ceramic brake system rear axle BMW F90 pic 2
carbon ceramic brake system rear axle BMW F90 pic 2

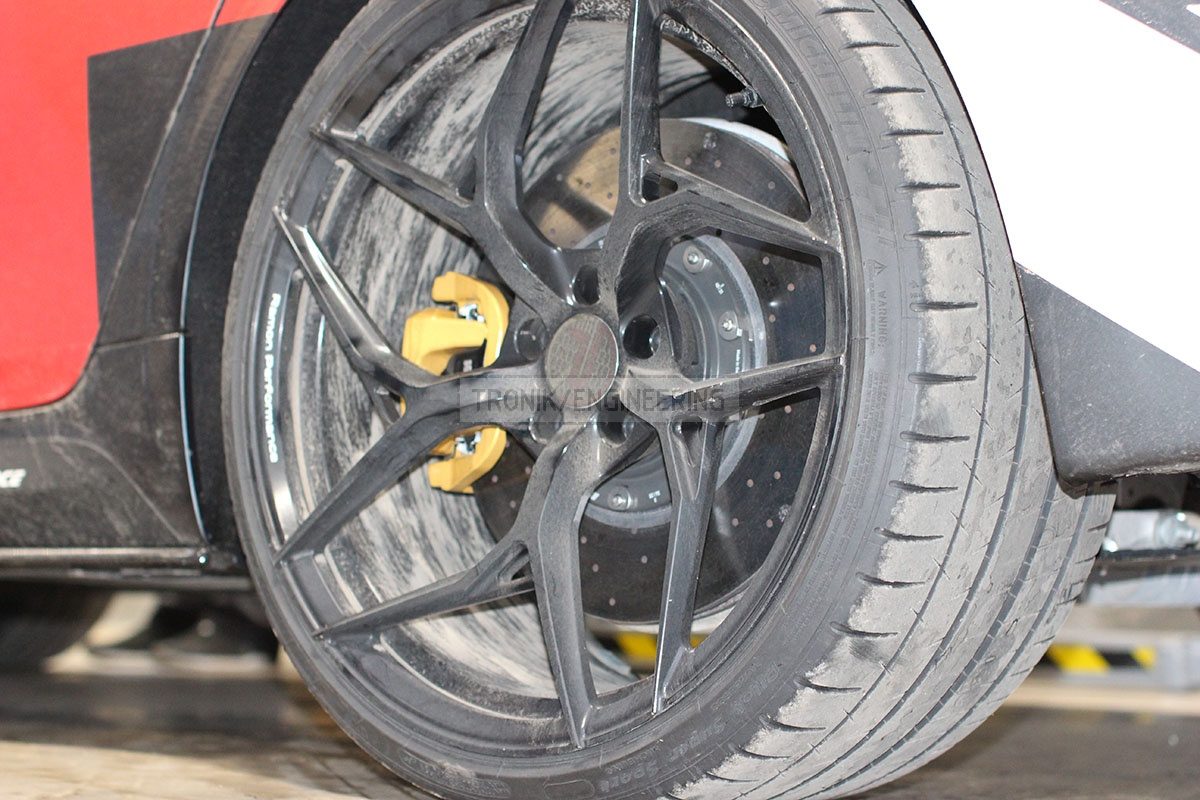

carbon ceramic brake system rear axle BMW F90 pic 3
carbon ceramic brake system rear axle BMW F90 pic 3

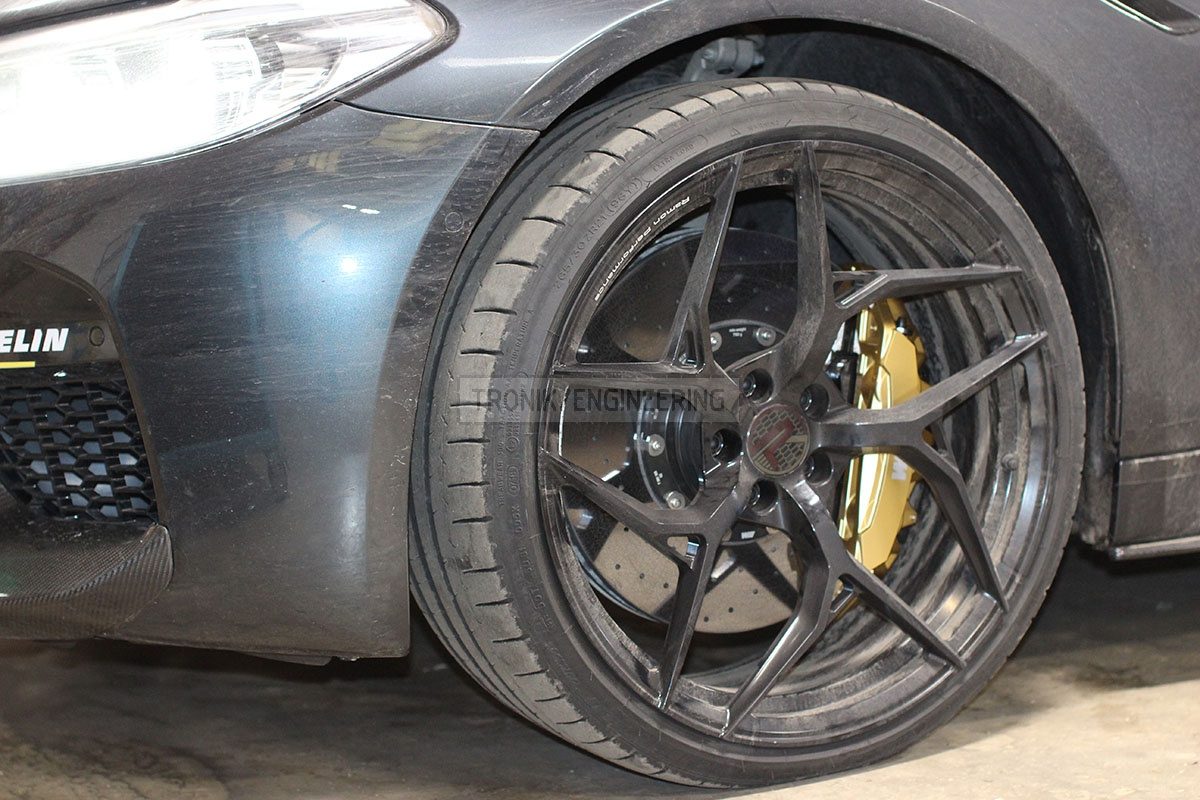

carbon ceramic brake system front axle BMW F90 pic 5
carbon ceramic brake system front axle BMW F90 pic 5

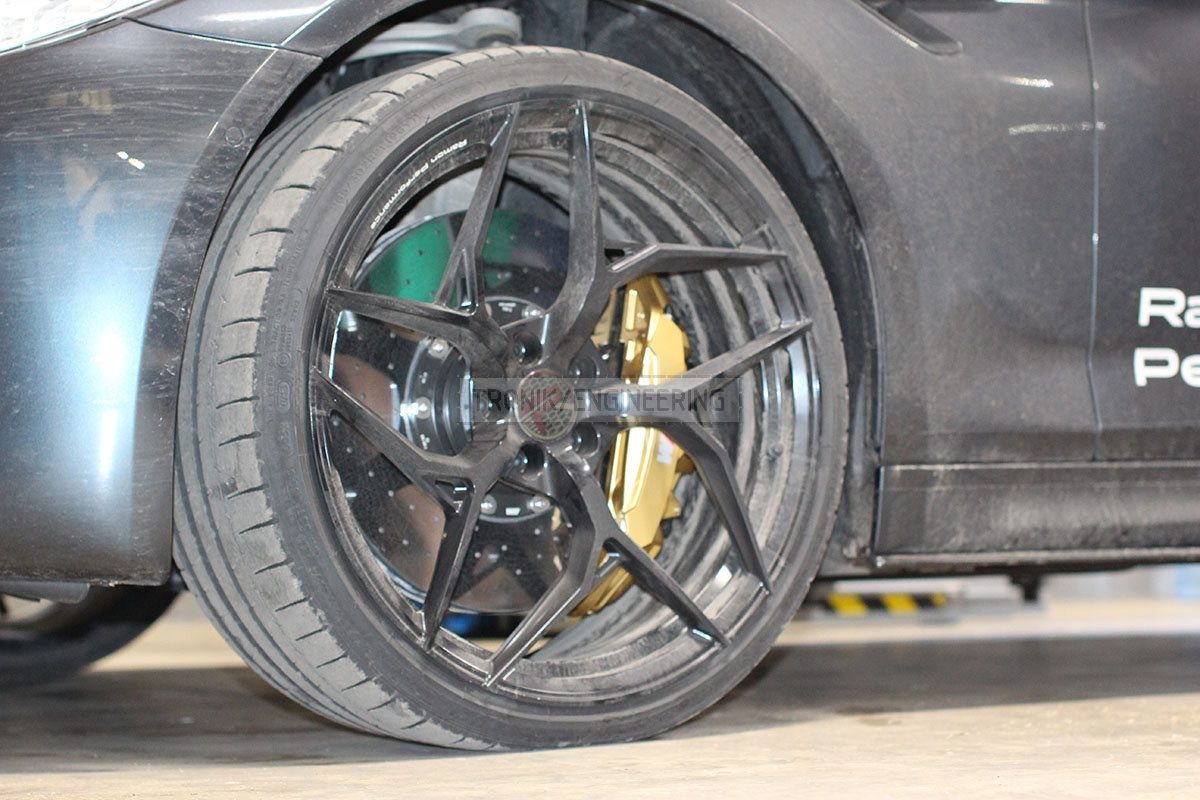

carbon ceramic brake system front axle BMW F90 pic 6
carbon ceramic brake system front axle BMW F90 pic 6
beaty
beaty
