Bentley GT carbon ceramic brake system

CCB Bentley Continental GT 2019

buy now

bentley
bentley

Paying around 230 000 euro for a car, you have no chance to get a modern CCB brake system!
Factory brake system equipment:
Front axle:
– brake rotor w/ 420 mm in diameter, 40 mm thick (cast iron)
– 10-pot Akebono caliper
– brake pads (cast iron)

standard brake system Bentley Continental GT 2019 front axle size 420-40
standard brake system Bentley Continental GT 2019 front axle size 420-40

Rear axle:
– brake rotor 380 mm in diameter, 30 mm thick (cast iron)
– 4-pot Brembo caliper
– brake pads (cast iron)

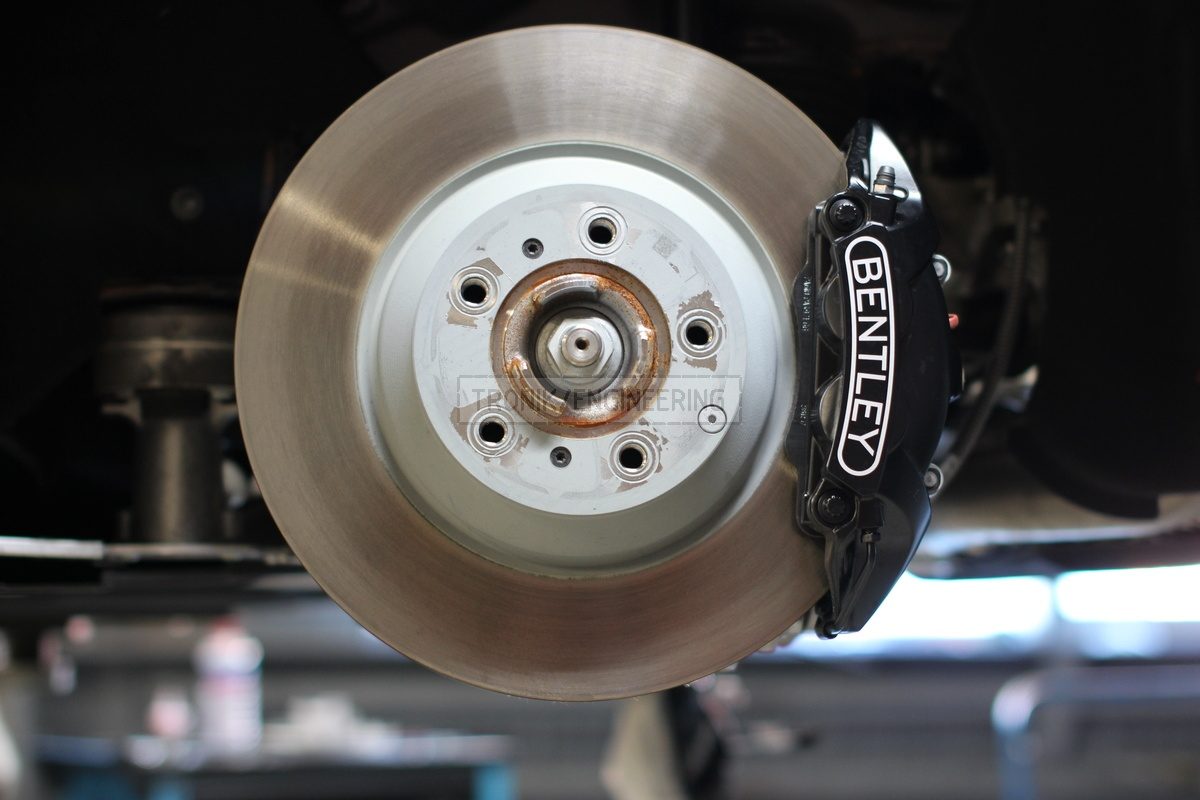

standard brake system Bentley Continental GT 2019 front axle size 380-30
standard brake system Bentley Continental GT 2019 front axle size 380-30

After thoroughly studying components of this brake system, we did a comparative analysis of the standard and existing carbon ceramic brake rotors geometry.
And no matter how badly the Bentley marketologists wanted to fence off they dear automobile from the folksy brand (VW), the closeness of their platforms allows the Bentley owners to use standard brake system components, used for Porsche.
Let’s look at the components of a standard brake system, front axle.
– standard brake rotor 420 mm diameter, 40 mm thick
– rotor made out of cast iron, has a directed ventilation, aliminum hat, and rotor clamp on pins
– brake rotor weight is 21,040 kg, it’s a record weight among the cars.

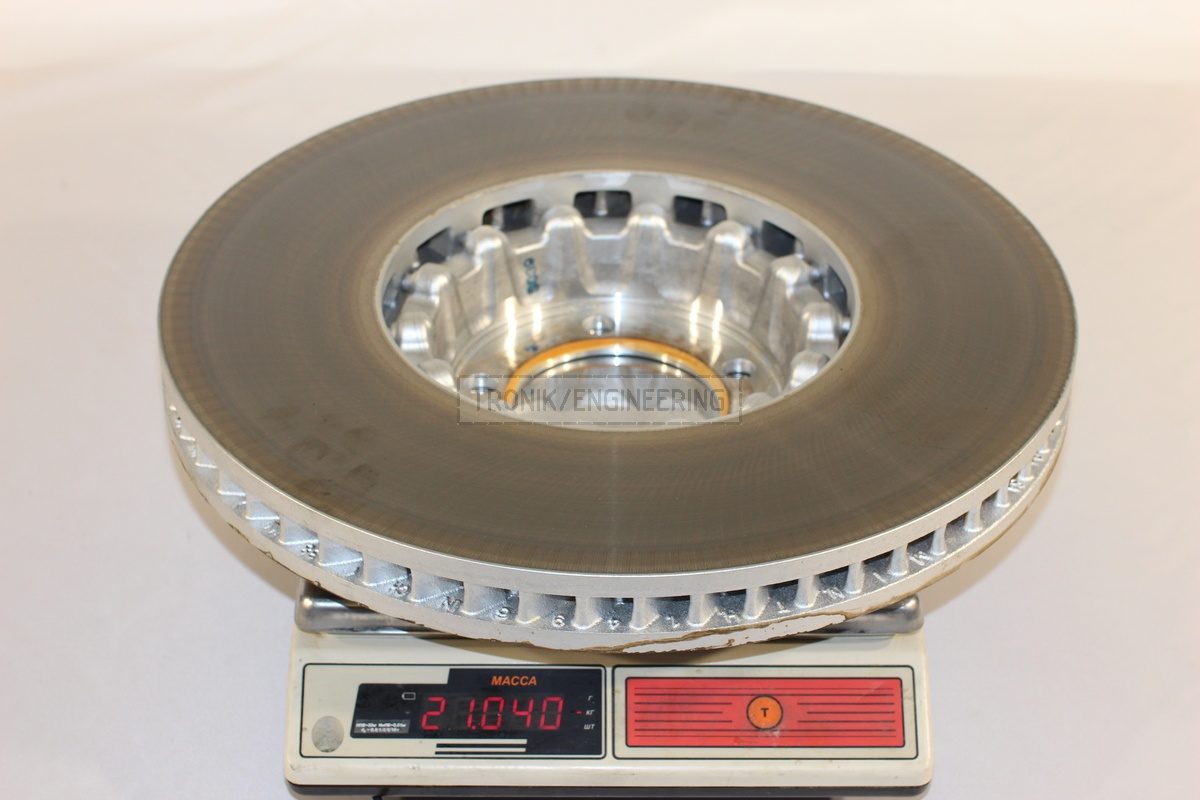

front axle standard brake rotor weight 21040 gr
front axle standard brake rotor weight 21040 gr

Porshe carbon ceramic brake rotor:
– Size 420*40
– ССВ rotor, has a directed ventilation, aliminum hat, rotor clamp on bobbins
– brake rotor weight is 8,110 kg

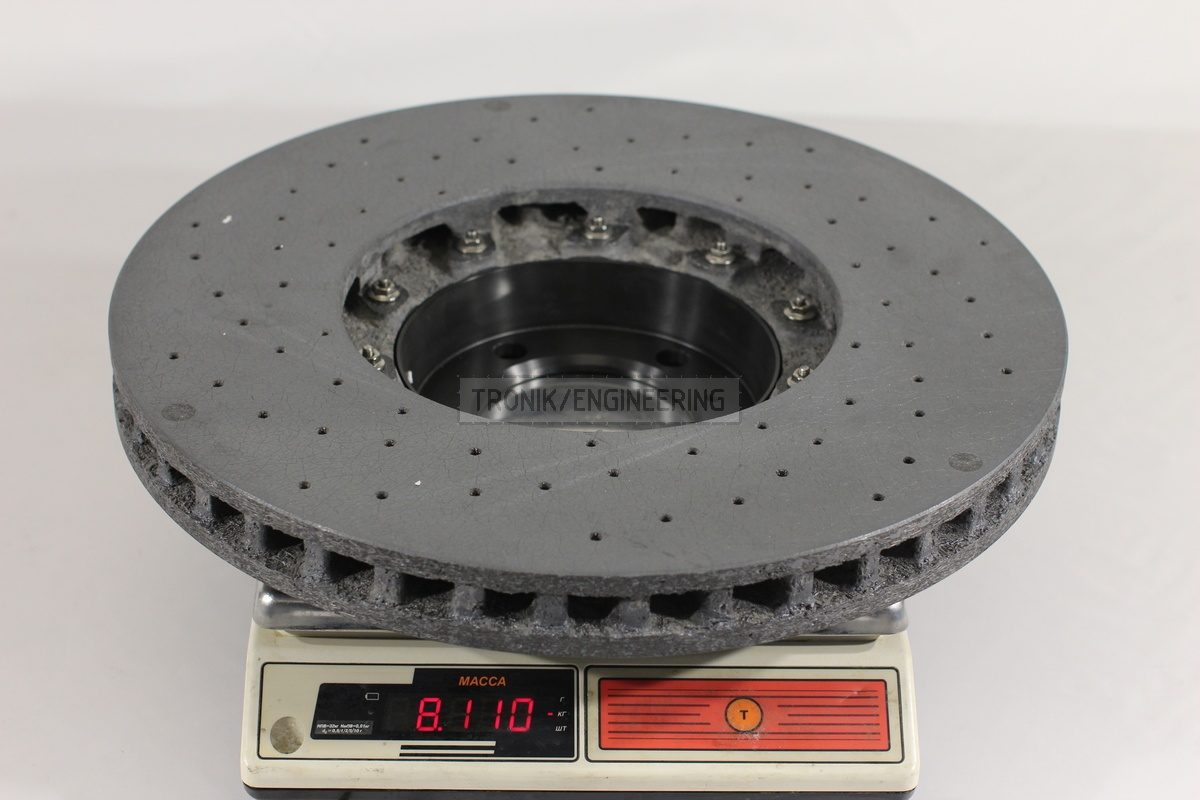

front axle carbon ceramic weight 8110 gr
front axle carbon ceramic weight 8110 gr

The brake rotors’ geometry is absolutely identical, which allows it to be used with a standard brake calipers, you just need to change brake pads and brake rotor to CCB.
Attention!!!
Carbon ceramic rotor is 12,93 kg lighter.
Decrease of a brake rotor weight of a front axle brake system is 25,860 kg in total!

It is a bit more complicated with the rear axle …
Standard brake rotor:
– Size 380*30
– Rotor made out of cast iron, has a directed ventilation
– brake rotor weight 12,500 kg.

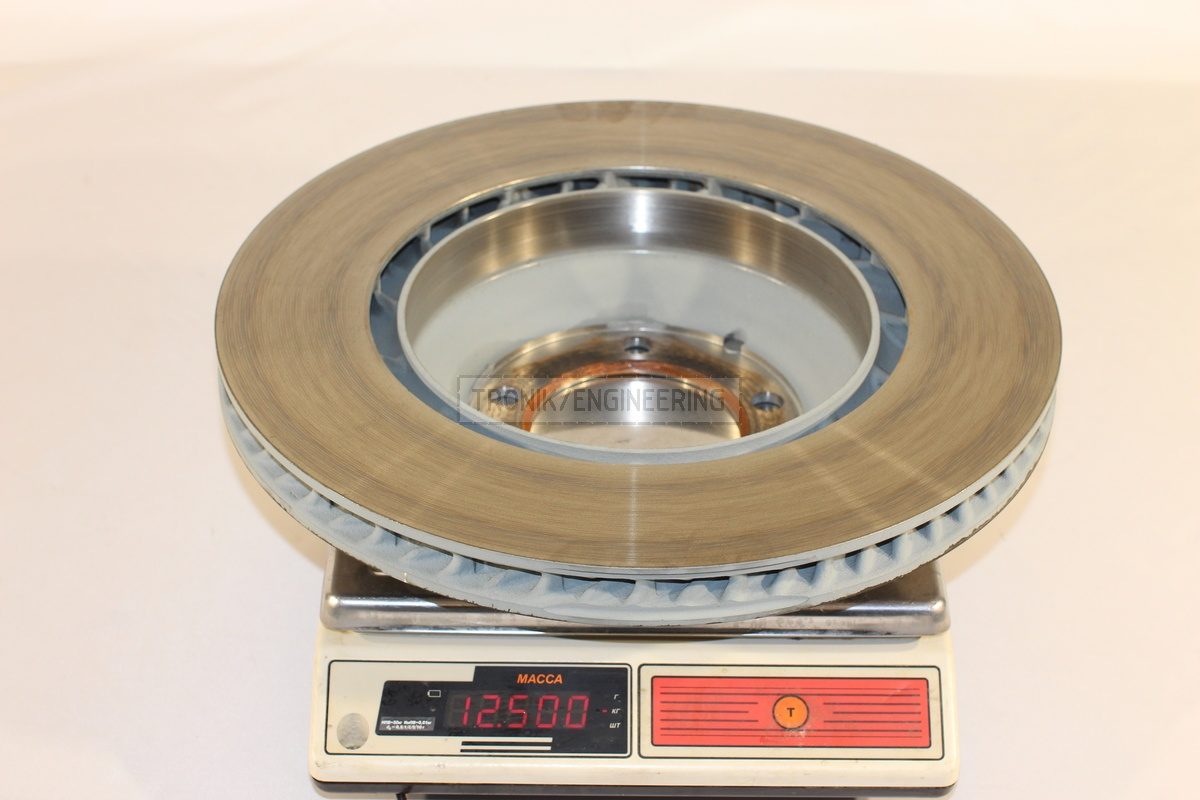

standard brake rotor weight 12500 gr
standard brake rotor weight 12500 gr

After doing the analysis of existing carbon ceramic brake rotors for possible geometric compatibility, we found a solution in using carbon ceramic Porsche brake rotor size 410*32, yet, due to increase of a brake rotor’s size we need to use a brake caliper of a different geometry, used in Porshe and CCB brake pads.
The caliper needs to be colored, and from yellow it turn black with the Bentley logo.
ССВ brake rotor is 410*32 in size, has a directed ventilation, aliminum hat, rotor clamp on bobbins
– brake rotor weight is 6,565 kg

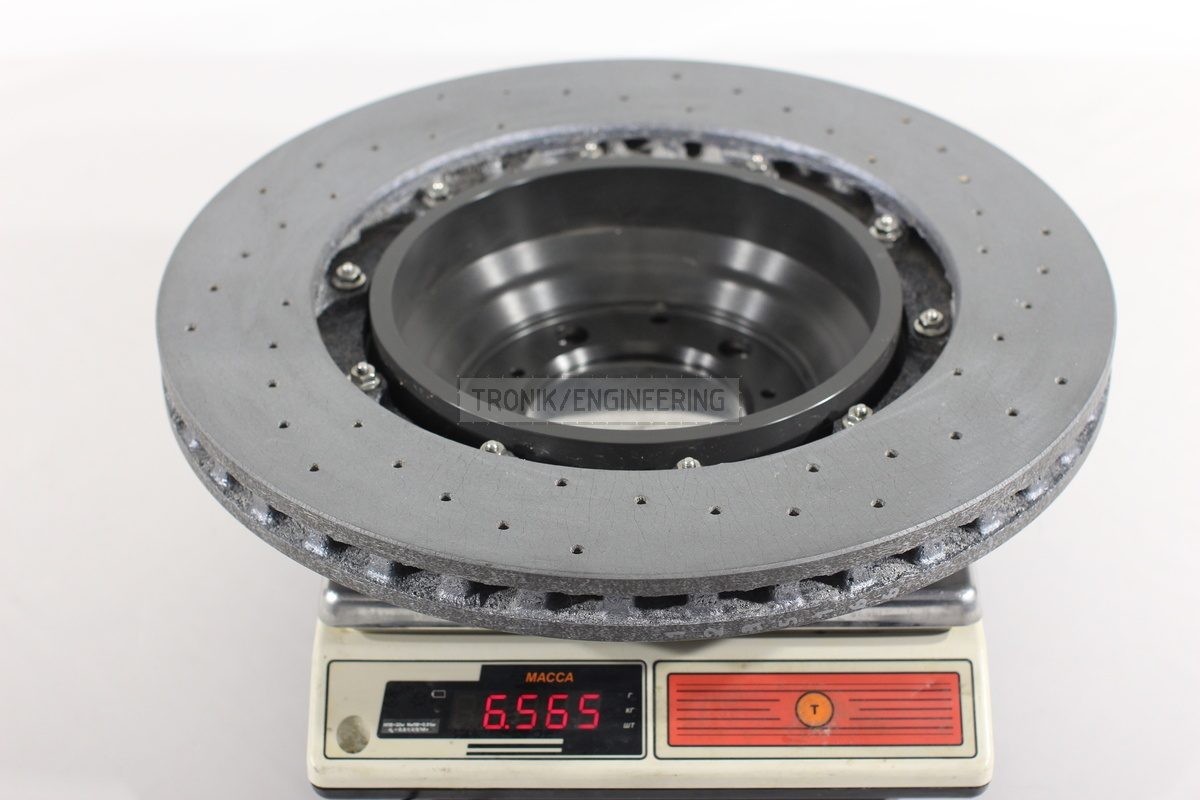

rear axle carbon ceramic brake rotor weight 6565 gr
rear axle carbon ceramic brake rotor weight 6565 gr

Carbon ceramic brake rotor is 5935 gr lighter.

Decrease in the rear axle brake rotor weight is 11,87 kg.

Carbon ceramic brake system retrofitting set
Front axle
– carbon ceramic brake rotor size 420х40
– CCB brake pads

standard caliper rotor size 420-40 CCB pads
standard caliper rotor size 420-40 CCB pads

Rear axle :
– carbon ceramic brake rotor size 410×32
– 4-pot Brembo caliper ( black colored, Porsche)
– CCB brake pads
– dust shields to fit bigger rotors

4 pot Brembo caliper & rotor 410-32 & CCB pads
4 pot Brembo caliper & rotor 410-32 & CCB pads

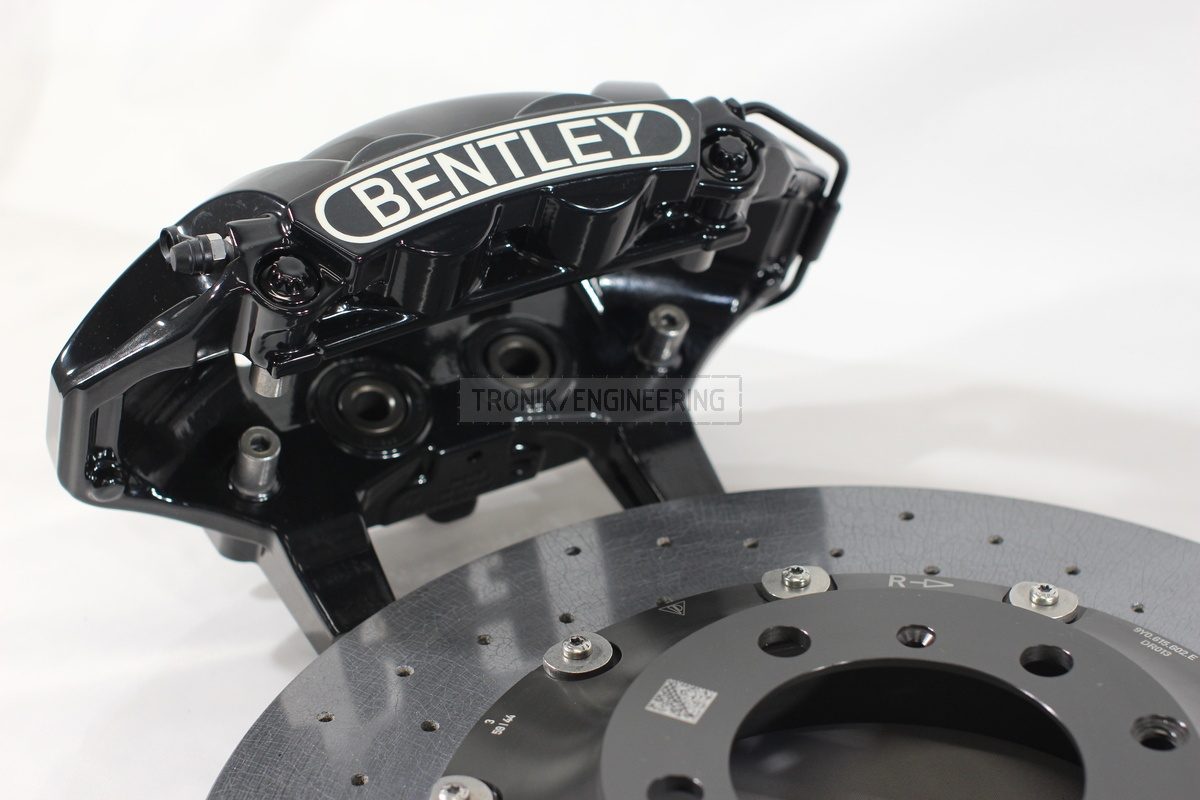

4 pot Brembo caliper & rotor 410-32
4 pot Brembo caliper & rotor 410-32
dust shield for bigger brake rotor
dust shield for bigger brake rotor
dust shield for bigger brake rotor 1
dust shield for bigger brake rotor 1
4 pot Brembo caliper & rotor 410-32 CBB pads & dust shield
4 pot Brembo caliper & rotor 410-32 CBB pads & dust shield

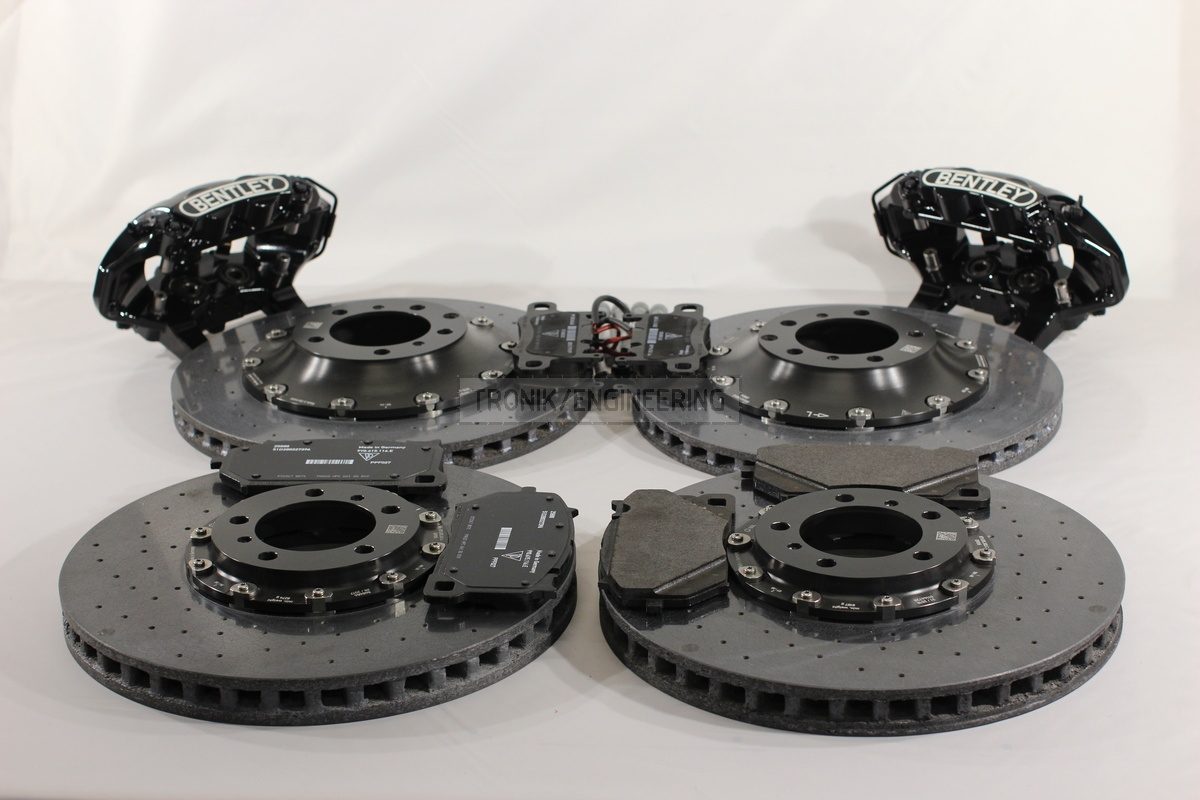

retrofit carbon ceramic brake system set for 2019 Bentley Continental GT
retrofit carbon ceramic brake system set for 2019 Bentley Continental GT

Retrofit carbon ceramic brake system set for 2019 Bentley Continental GT

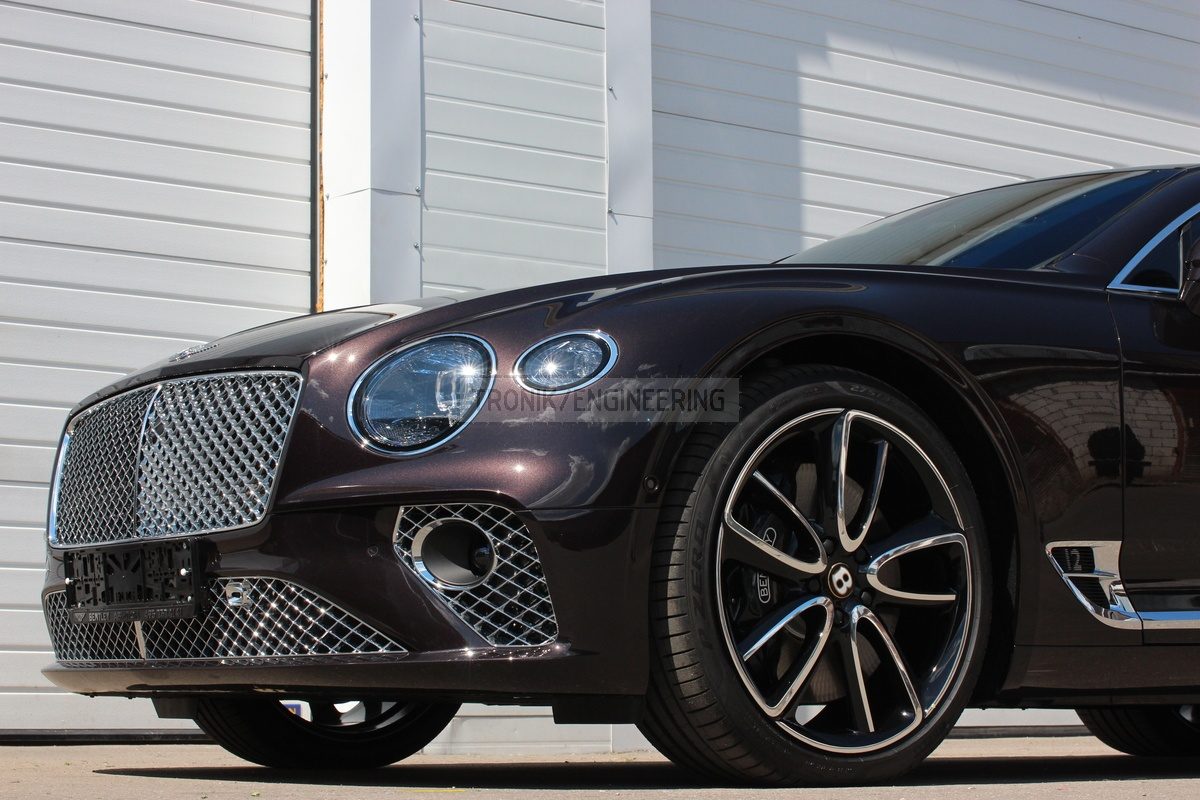

2019 Bentley Continental GT brake system front axle
2019 Bentley Continental GT brake system front axle

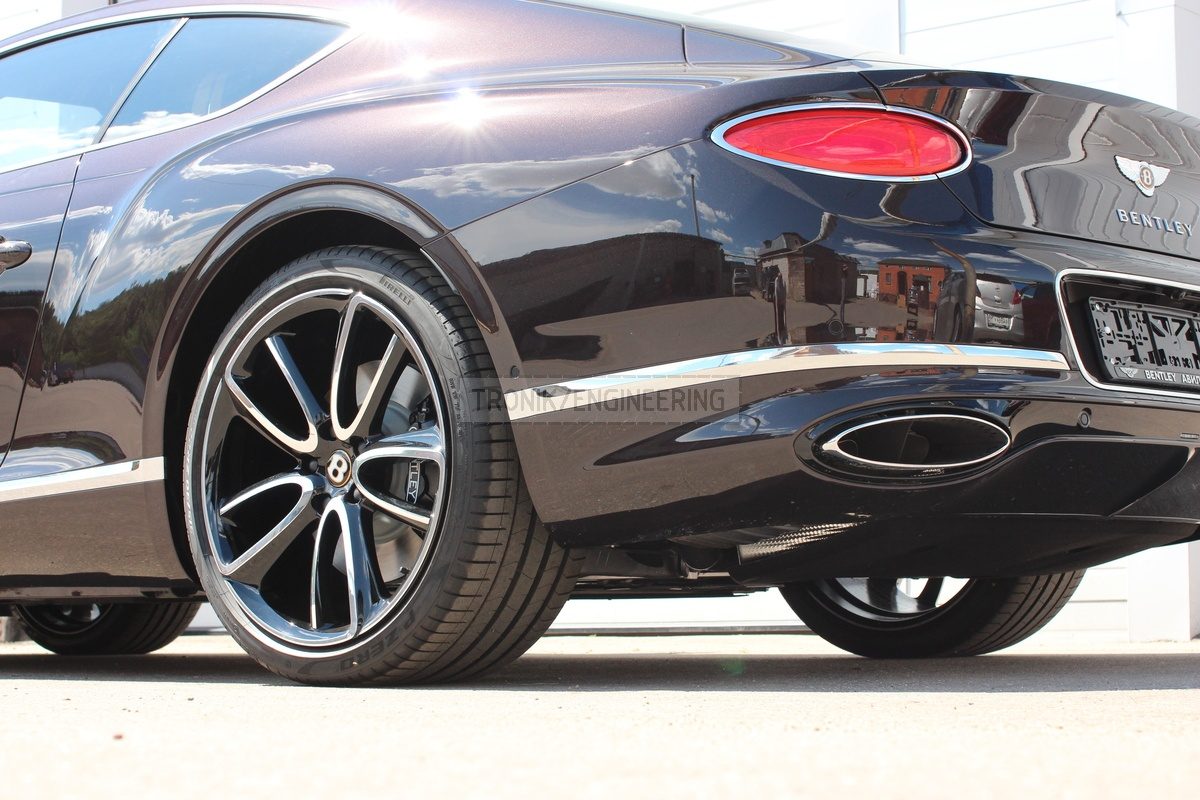

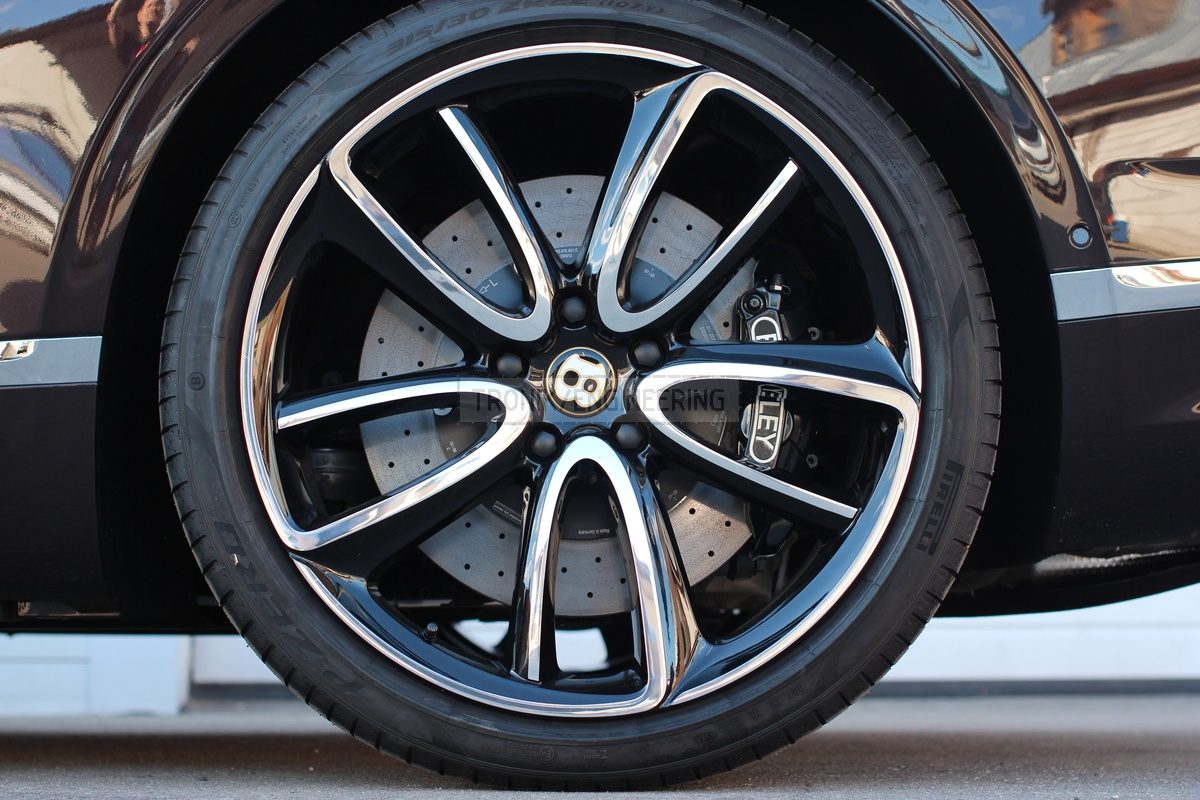

2019 Bentley Continental GT brake system rear axle
2019 Bentley Continental GT brake system rear axle
Bentley Continental GT 2019 CCB brakes
Bentley Continental GT 2019 CCB brakes
