BMW G05 brake system set

BMW Х5 brake system from F90

Here is our pioneer. BMW X5 G05 – GAZ M1 all-wheel drive F90 brake system installation.

As drilling holes to fit brake rotor from G-series 5*112 instead of 5*120, as on F и Е series, then as a basis for new bake system we are using BMW F90 brakes (on this one only the drilling is 5*112)

Front axle:
– BMW 395х36 brake rotor – 34 11 7 991 101, 34 11 7 991 102 (34117991101, 34117991102)
– 6-pot Brembo caliper in blue – 34 11 8 089 937, 34 11 8 089 938 (34118089937, 34118089938)
– OEM BMW brake pads – 34 11 7 991 033, 34 10 8 746 107 (34117991033, 34108746107)
– Tronik adapters (our own make)
– all necessary fastening screws.

Rear axle:
– BMW 380х28 brake rotor – 34 21 7 991 103, 34 21 7 991 104 (34217991103, 34217991104)
– single pot TRW w/ a floating clamp – 34 20 6 882 997б 34 20 6 882 998 (34206882997, 34206882998)
– clamp – 34 20 6 882 989, 34 20 6 882 990 (34206882989, 34206882990)
– ОЕМ brake pads – 34 21 7 991 043 (34217991043)
– Tronik adapters (our own make)
– all necessary fastening screws.

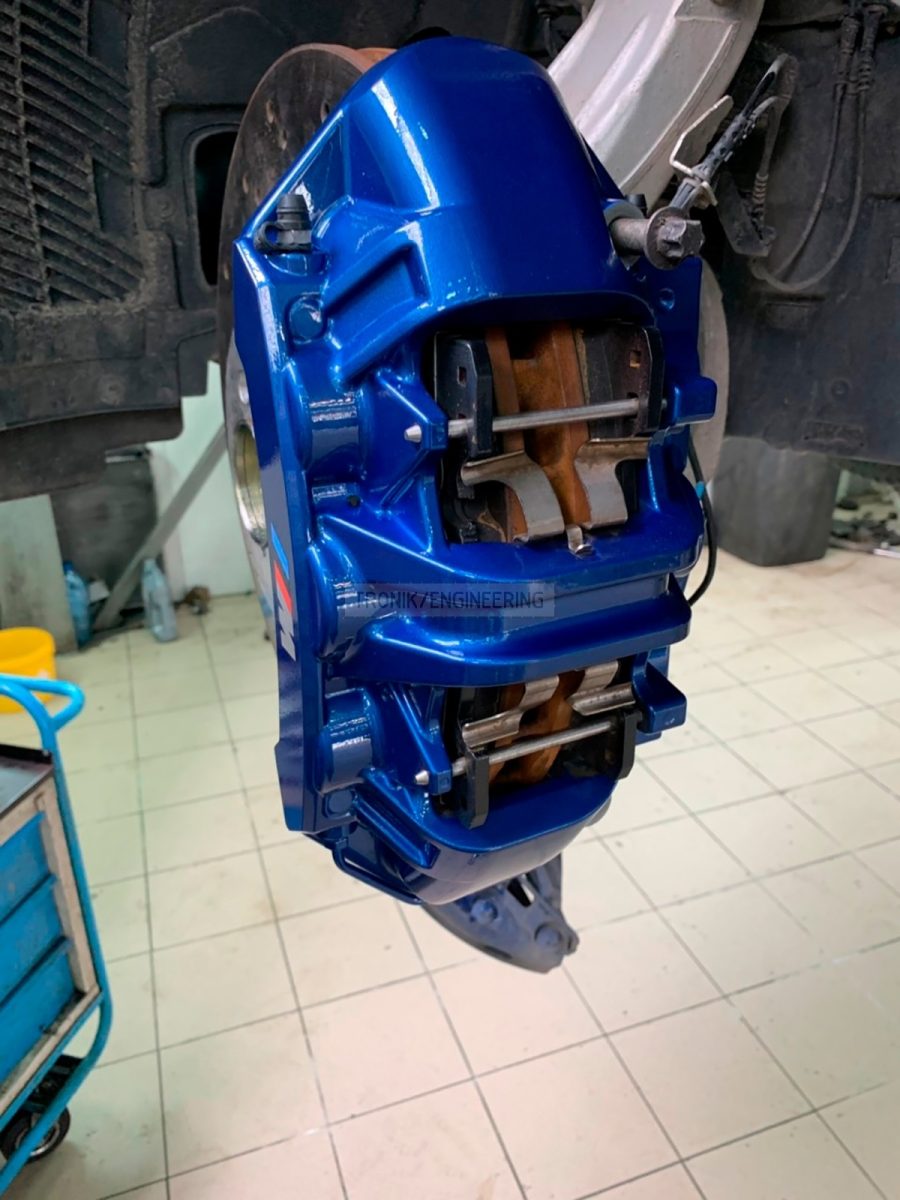

front 6 pot caliper pic 1

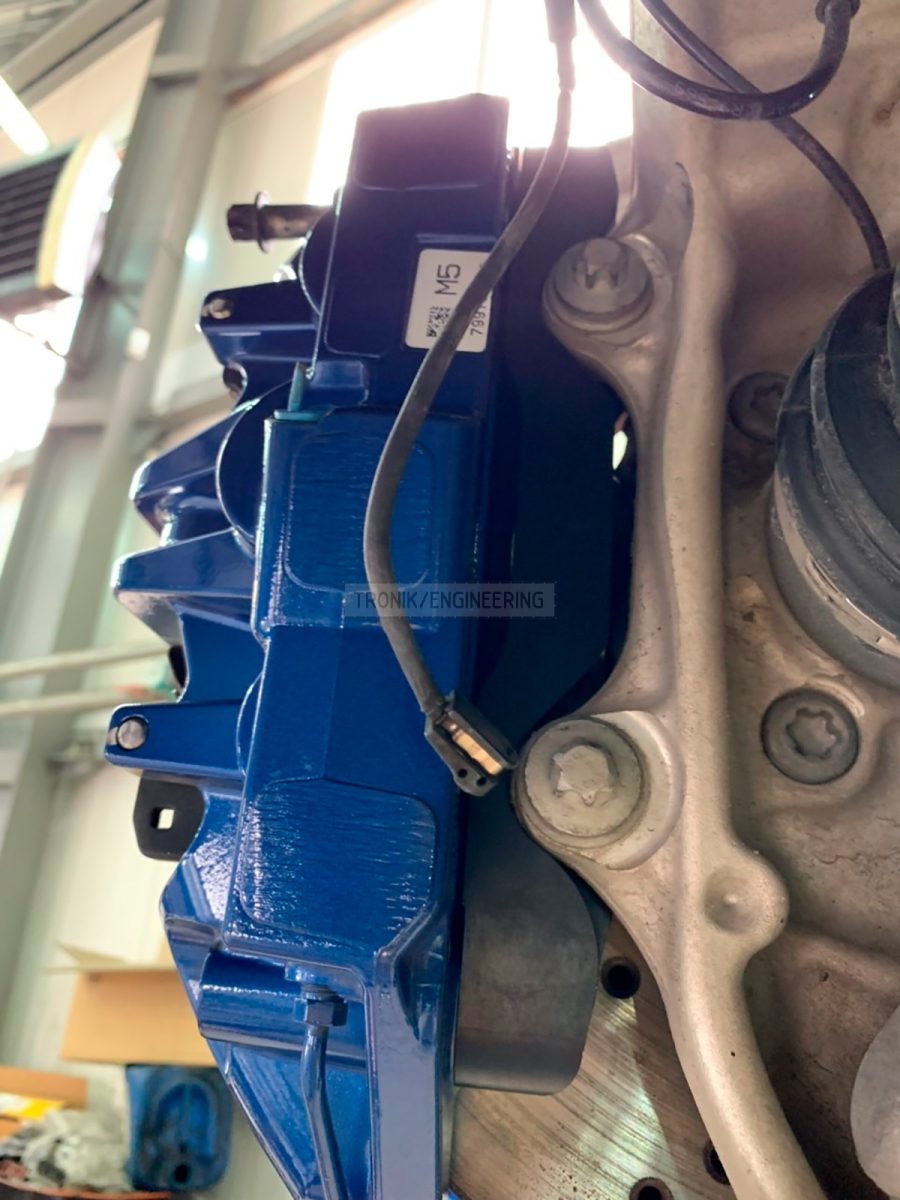

front 6 pot caliper pic 2

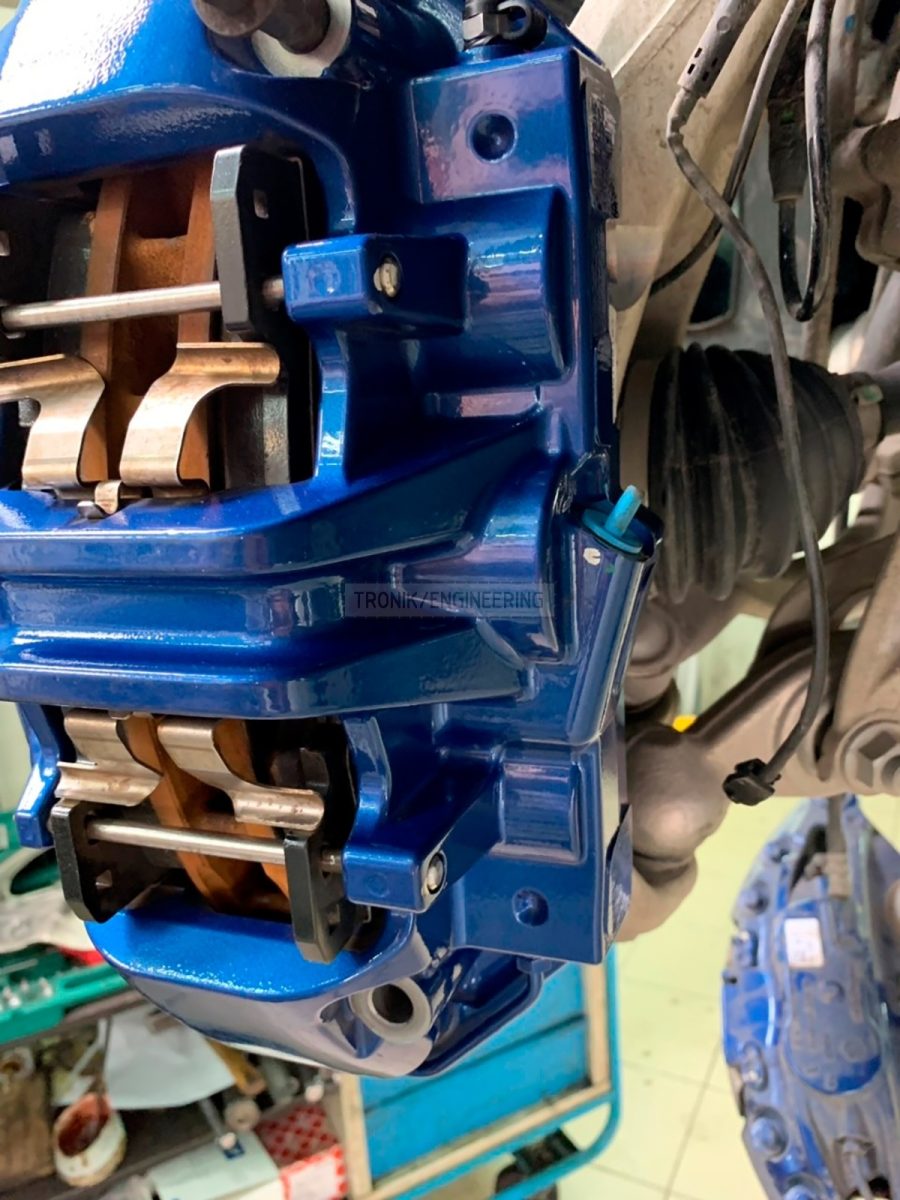

front 6 pot caliper pic 3

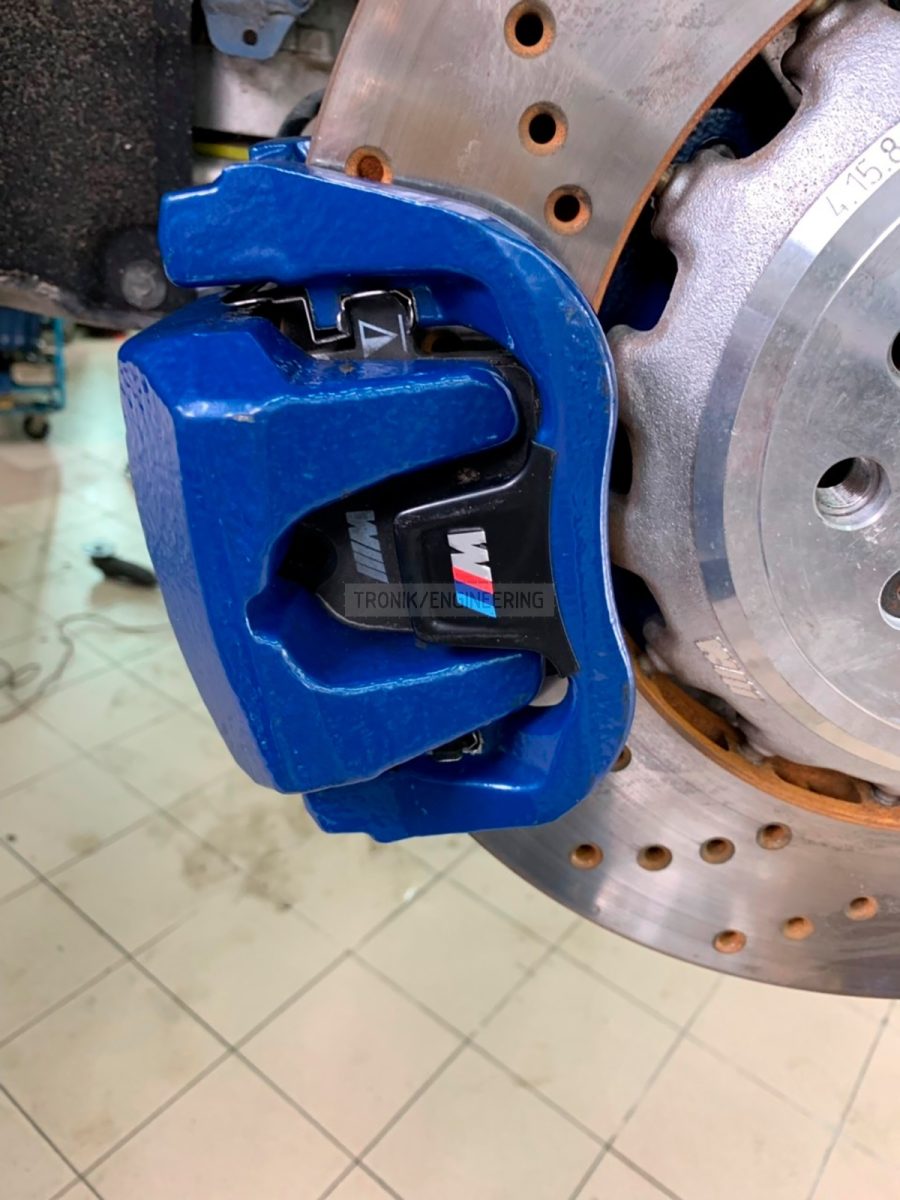

rear single pot caliper pic 1

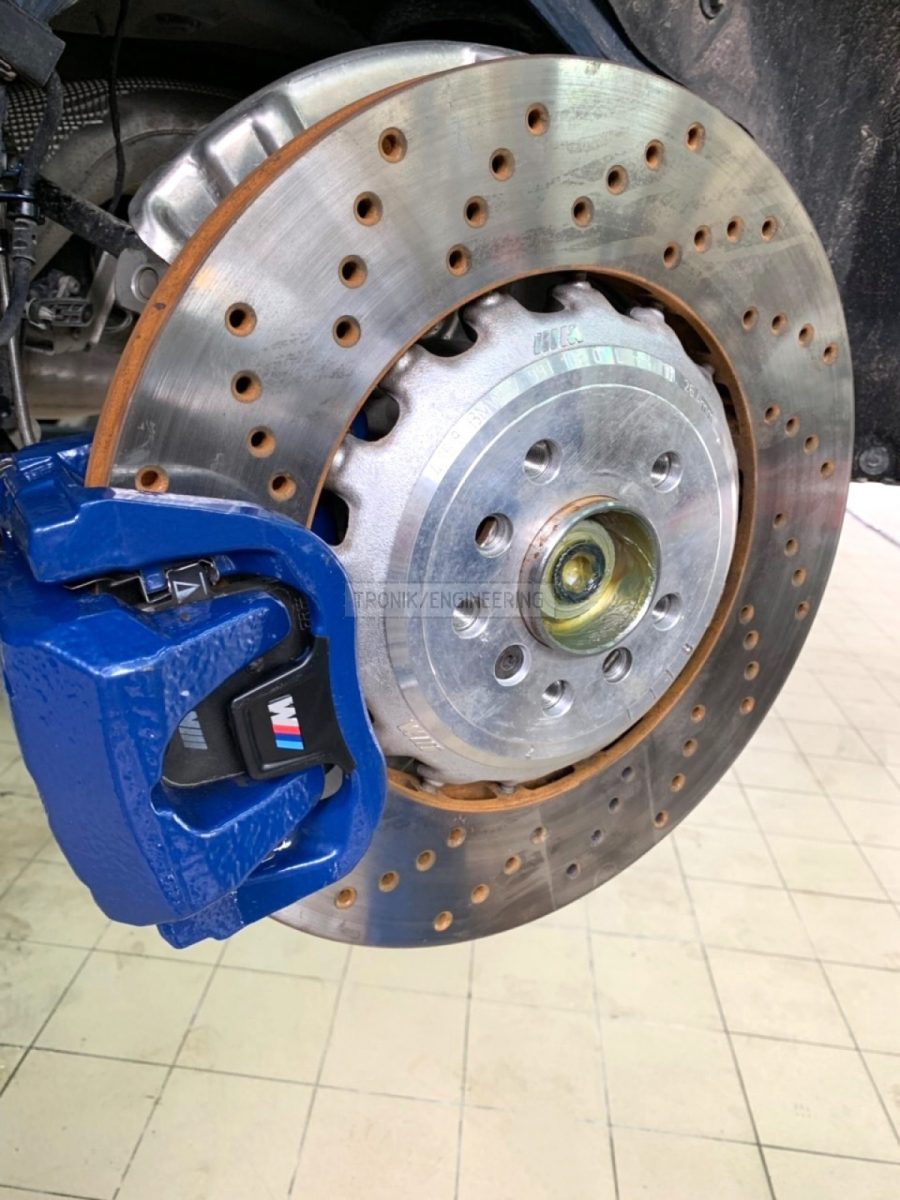

rear axle brake system pic 1

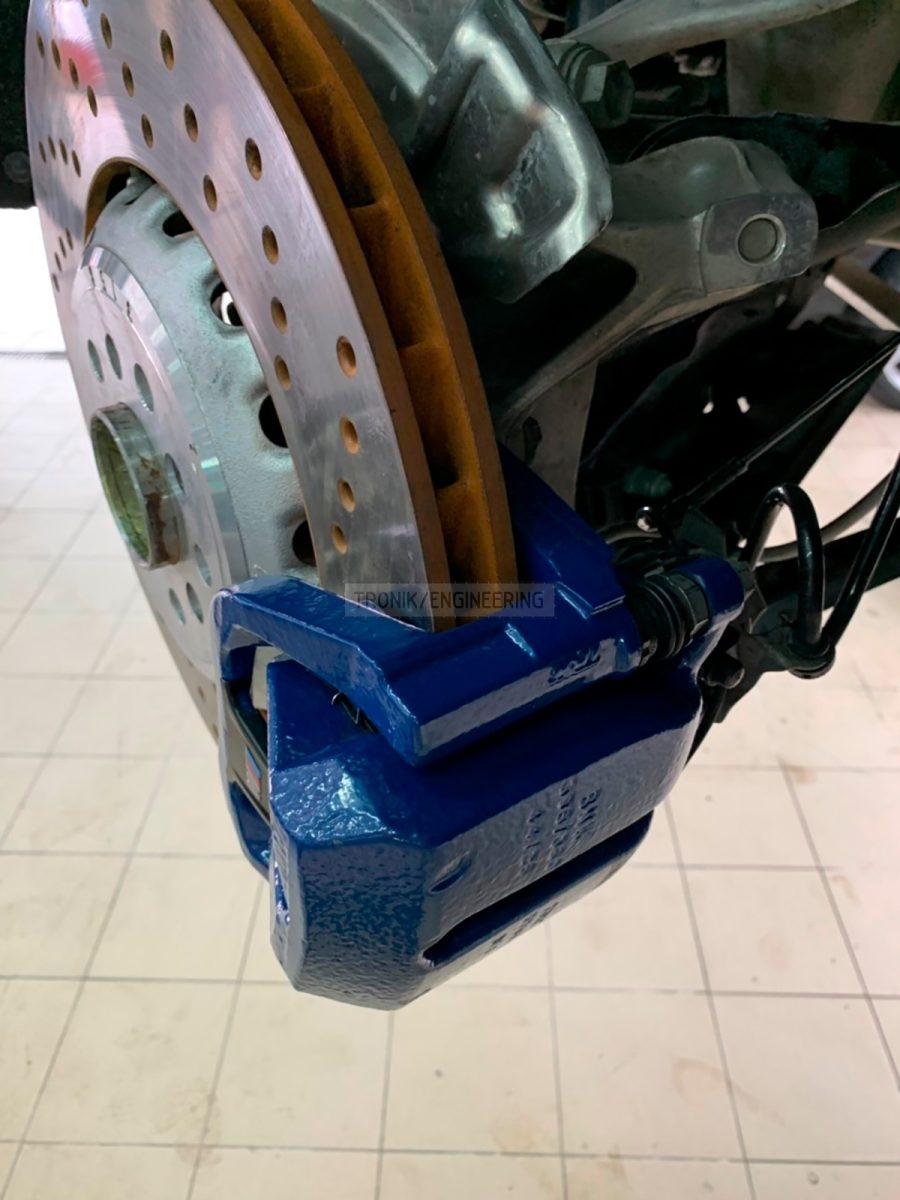

rear axle brake system pic 2

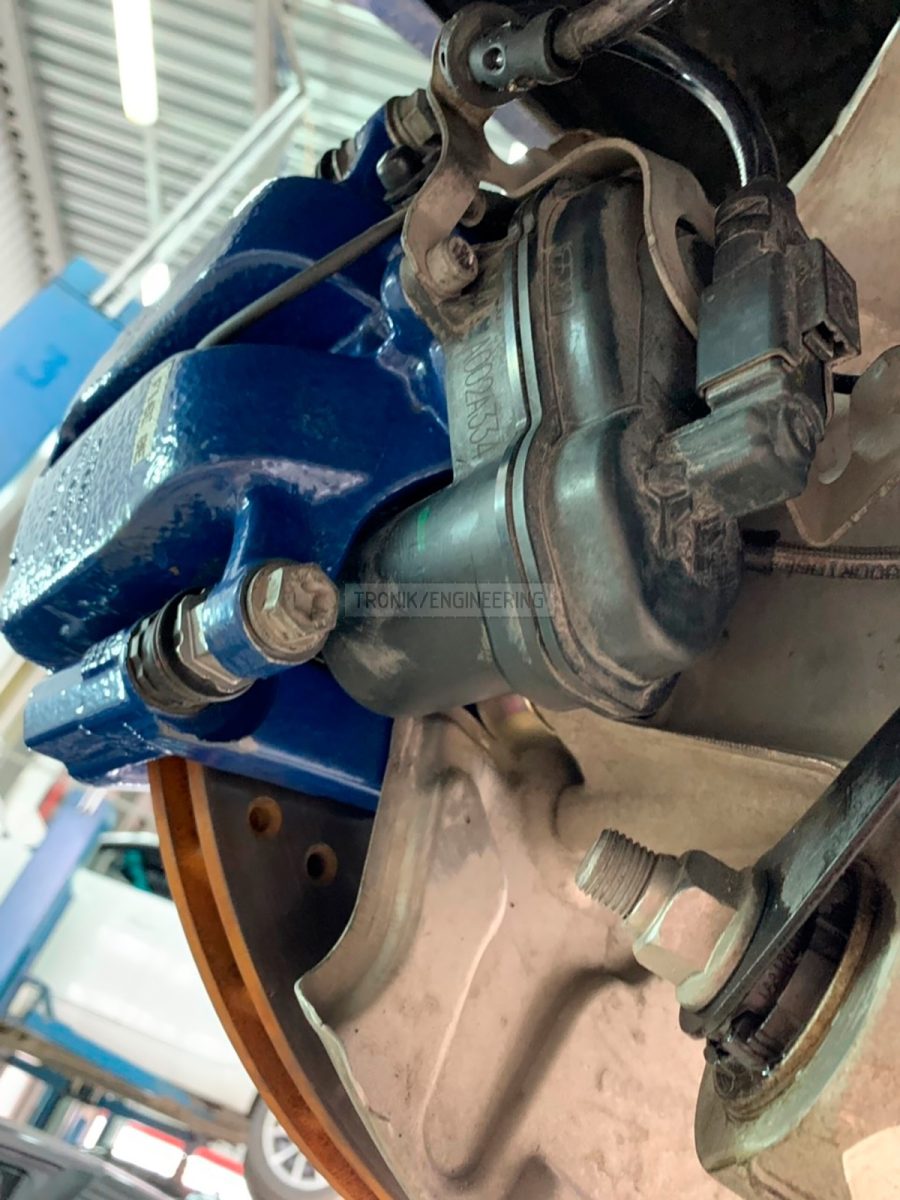

rear single pot caliper pic 2
front axle brake system pic 1

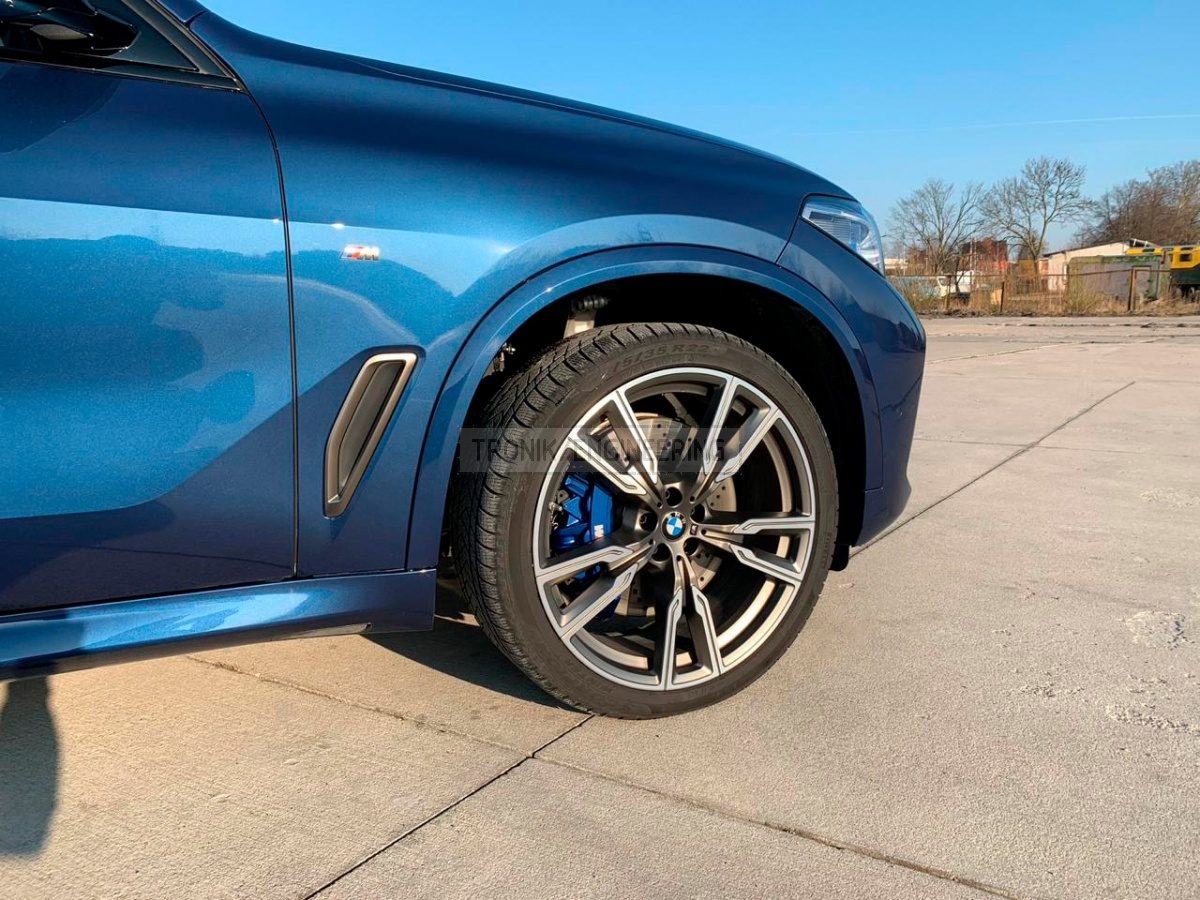

front axle brake system pic 2

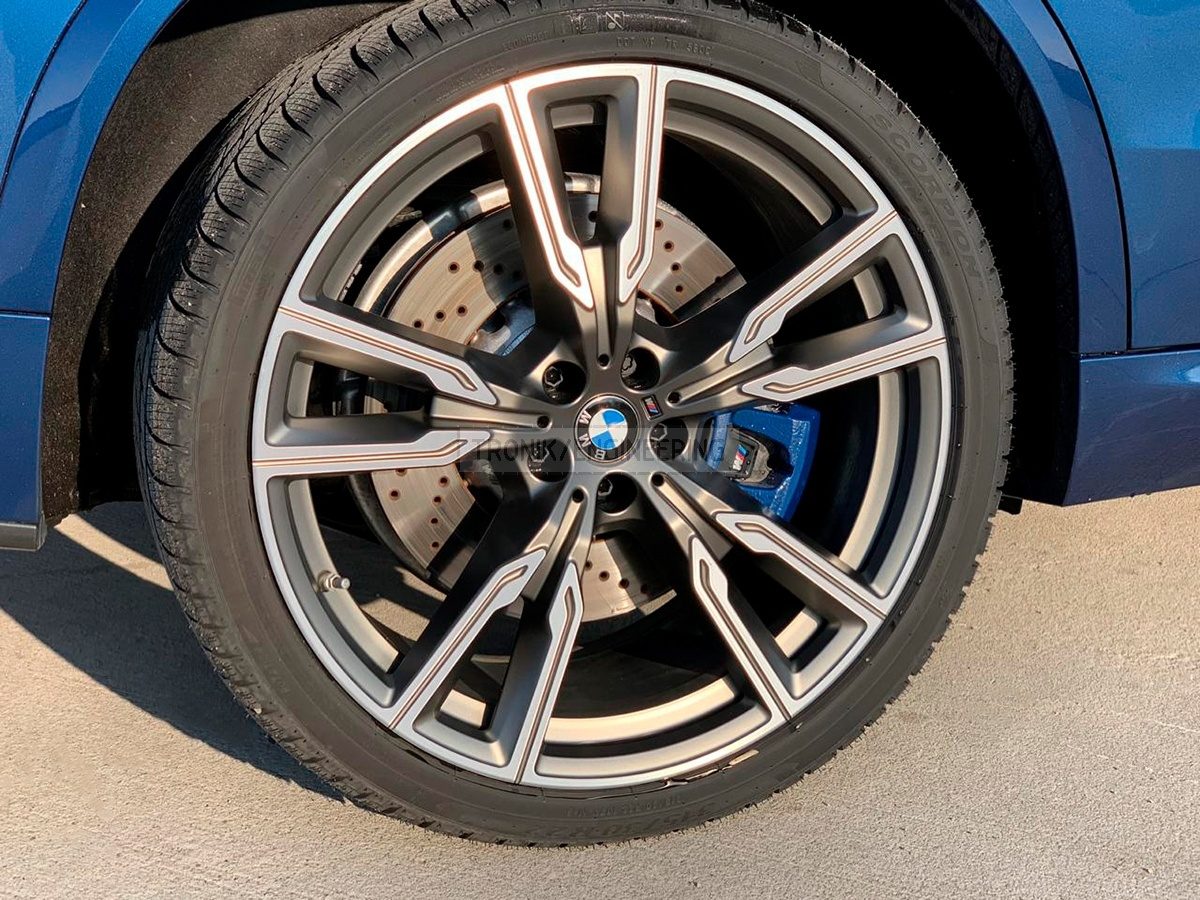

rear axle brake system pic1

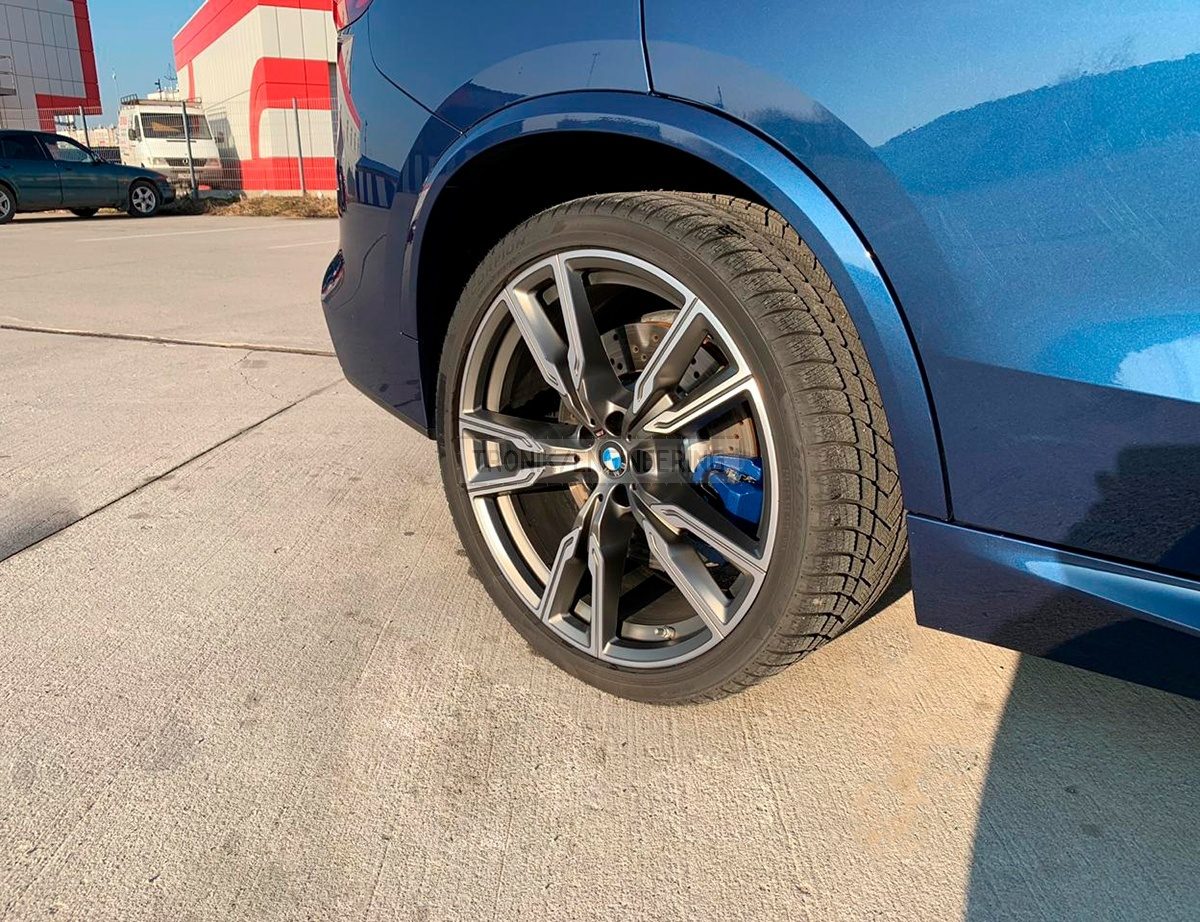

rear axle brake system pic2

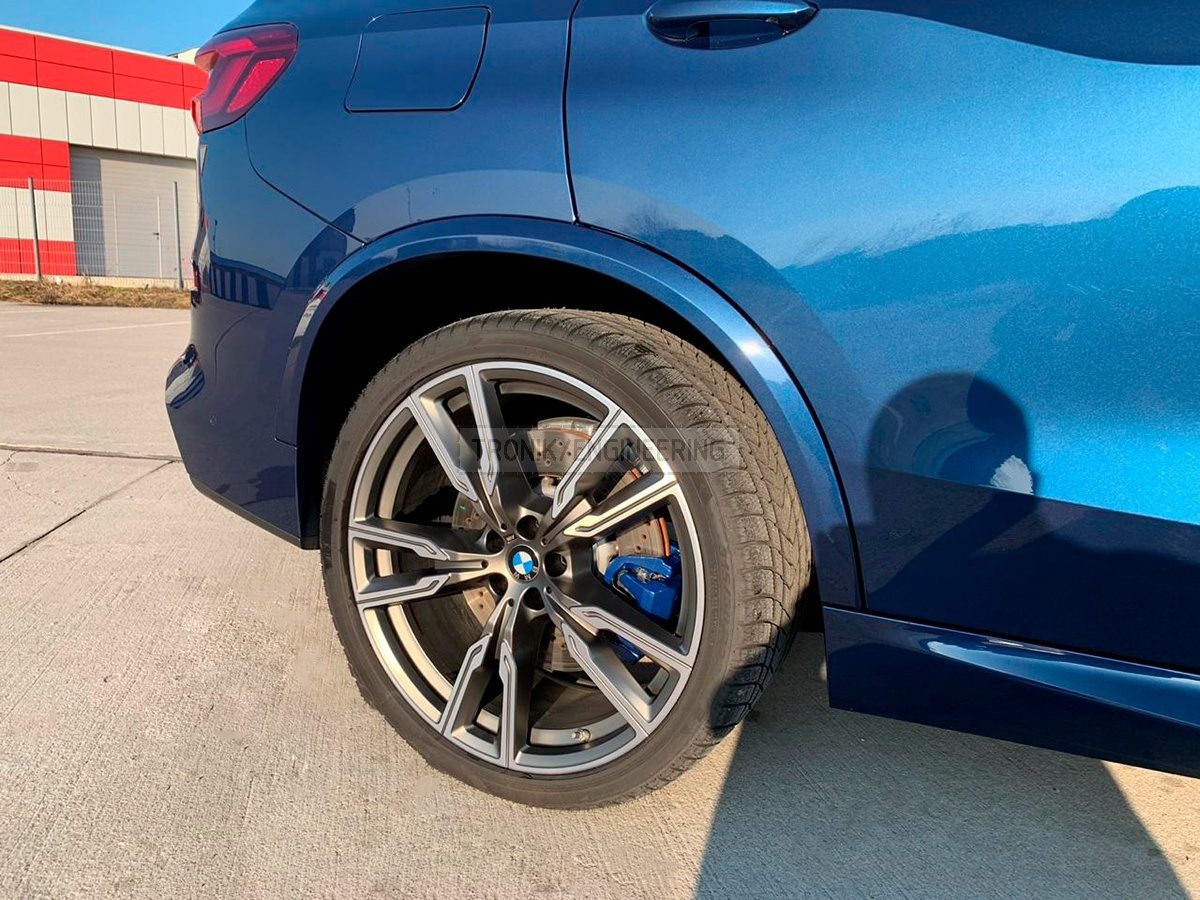

rear axle brake system pic3
rear axle brake system pic4
car exterior pic 1
car exterior pic 2
car exterior pic 3
car exterior pic 4
